INSTALLED

HL 35-S

FLYABLE PASSIVE SUBWOOFER

3600W Peak Power Handling
134 dB Max SPL
40 ÷ 140 Hz Frequency Range
1 x 15" High-Power Woofer

Where to buy

Features

3600W Peak Power Handling
134 dB Max SPL
40 ÷ 140 Hz Frequency Range
1 x 15" High-Power Woofer
Baltic birch Plywood Cabinet
Steel Front Grille with Cloth
M20 Standard Pole Mount (top of cabinet)
2 x SpeakON Connectors

The HL 35-S is the ideal flyable bass complement for the HL 6 line array system. It features a Baltic birch plywood cabinet housing one 4.0” voice coil and a 15” neodymium woofer that handles frequencies from 40 Hz to 140 Hz, with maximum linearity and low distortion up to 134 dB. The hardware is designed for fast deployment and is completely compatible with HL 6 rigging. The heavy-duty front grille is powder-coated with a special transparent-to-sound foam backing inside that helps to further protect the transducers from dust and debris.

Part number:

13000732
HL 35-S
Black - RAL 9005, EAN 8024530019075

13000945
HL 35-S W
White - RAL 9003, EAN 8024530024116

Recommended Power Amp

XPS SERIES

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

Designed for installation

The passive architecture makes the HL 35-S one of the lightest 15" flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it's the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-AS provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

Precision transducers

Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.

Cabinet & mechanics

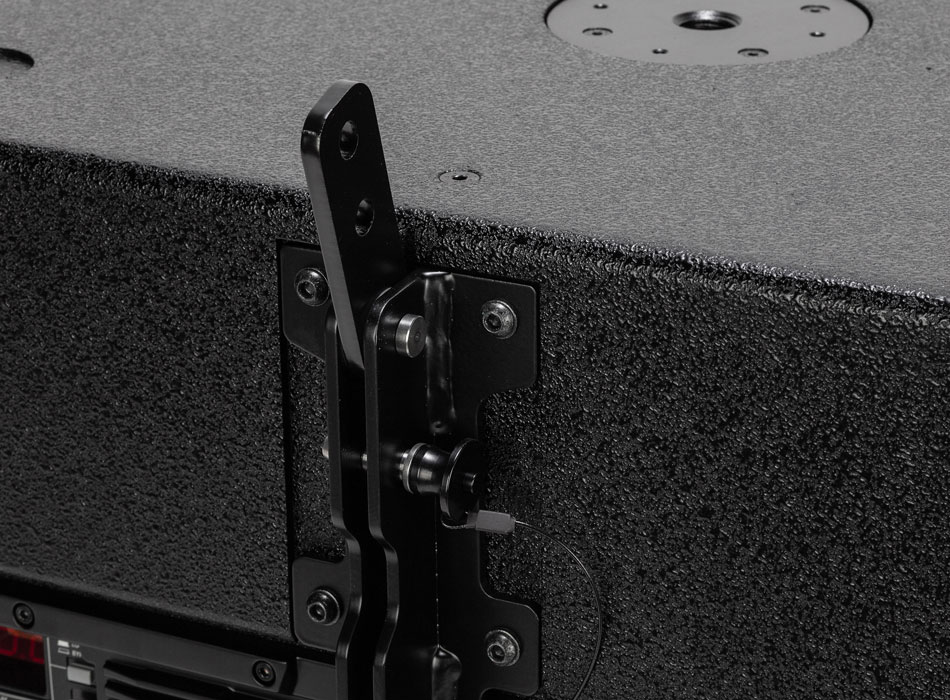

The hardware is designed for an easy and fast setup, completely compatibile with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

The HL 6’s perfect low-frequency companion

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup. The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
