QL-PIN 008

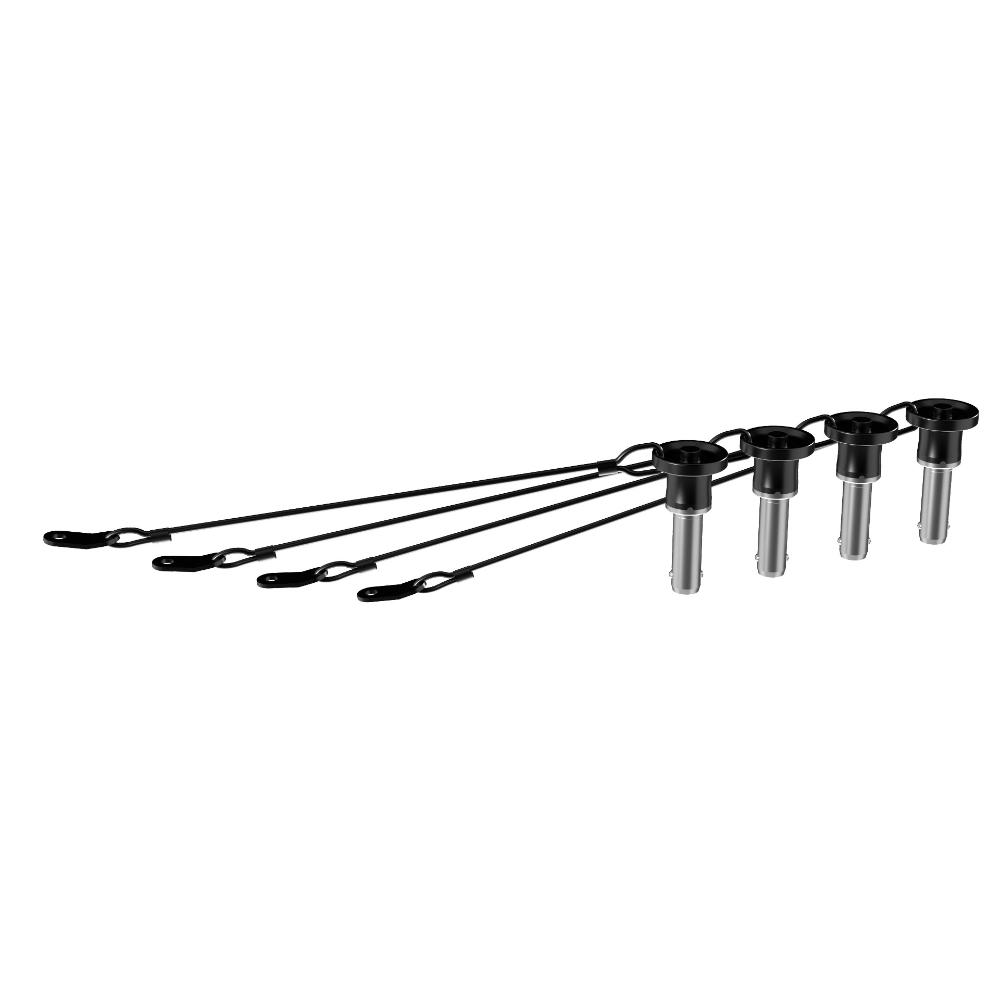

4 X QUICK LOCK PIN KIT
  • Stainless steel construction
  • Dimensions: Ø 9.5 mm - L. 21 mm
Where to buy
Features Specifications Downloads Compatible products
Where to buy
Features
  • Stainless steel construction
  • Dimensions: Ø 9.5 mm - L. 21 mm

Part number:

13360626
QL-PIN 008
EAN 8024530020897

Pin Position Table



P/N PINS PIN NAME PRODUCT POSITION TYPOLOGY
13360626 QL-PIN 008 HDL 20-A FRONT LINK
13360626 QL-PIN 008 HDL 20-A FRONT LOCK
13360626 QL-PIN 008 HDL 18-AS FRONT LINK
13360626 QL-PIN 008 HDL 10-A FRONT LINK
13360626 QL-PIN 008 HDL 10-A FRONT LOCK
13360626 QL-PIN 008 HDL 15-AS FRONT LINK
13360626 QL-PIN 008 HDL 30-A FRONT LINK
13360626 QL-PIN 008 HDL 38-AS FRONT LINK
13360626 QL-PIN 008 HDL 36-AS FRONT LINK
13360626 QL-PIN 008 HDL 30-A FRONT LOCK
13360626 QL-PIN 008 HDL 38-AS FRONT LOCK
13360626 QL-PIN 008 HDL 36-AS FRONT LOCK
13360626 QL-PIN 008 HDL 28-A FRONT LINK
13360626 QL-PIN 008 HDL 28-A FRONT LOCK
13360626 QL-PIN 008 HDL 6-A FRONT LINK
13360626 QL-PIN 008 HDL 26-A FRONT LINK
13360626 QL-PIN 008 HL 6 FRONT LINK
13360626 QL-PIN 008 HDL 6-A REAR LINK
13360626 QL-PIN 008 HDL 26-A REAR LINK
13360626 QL-PIN 008 HL 6 REAR LINK
13360626 QL-PIN 008 HDL 12-AS FRONT LINK
13360626 QL-PIN 008 HDL 35-AS FRONT LINK
13360626 QL-PIN 008 HL 35 FRONT LINK
13360626 QL-PIN 008 HDL 12-AS REAR LINK
13360626 QL-PIN 008 HDL 35-AS REAR LINK
13360626 QL-PIN 008 HL 35 REAR LINK
13360626 QL-PIN 008 TTL 6-A REAR LINK
13360626 QL-PIN 008 TTL 6-AS REAR LINK
13360626 QL-PIN 008 V-BR TT 1 SIDE LOCK
13360626 QL-PIN 008 V-BR TT 2 SIDE LOCK
13360626 QL-PIN 008 V-BR TT 5 SIDE LOCK
13360626 QL-PIN 008 FL-B NXL 24-A
13360626 QL-PIN 008 FL-B NXL 44-A
13360626 QL-PIN 008 PM-KIT 2X HDL 20 FRONT LINK
13360626 QL-PIN 008 PM-KIT 2X HDL 20 REAR LINK
13360626 QL-PIN 008 V-BR TT 22 II SIDE LOCK
13360626 QL-PIN 008 V-BR TT 25 II SIDE LOCK
13360626 QL-PIN 008 FL-B LINK NXL 44
13360626 QL-PIN 008 STCK-KIT NXL 44
13360626 QL-PIN 008 FL-B HDL 6 FRONT LINK STACKING
13360626 QL-PIN 008 KRT-WH 6X HDL 6 FRONT LINK
13360626 QL-PIN 008 FL-B LINK HDL 6-12 2X
13360626 QL-PIN 008 PM-KIT 3X HDL 6
13360626 QL-PIN 008 KRT-WH 4X HDL 30 FRONT LINK
13360626 QL-PIN 008 KRT-WH 3X HDL 38 FRONT LINK
13360626 QL-PIN 008 KRT-WH 3X HDL 36 FRONT LINK
13360626 QL-PIN 008 KRT-WH 4X HDL 28 FRONT LINK



Specifications
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Steel
Color
Black
Size / Weight
Weight
0.19 kg / 0.42 lbs
Shipping information
Package Height
20 mm / 0.79 inches
Package Width
145 mm / 5.71 inches
Package Depth
125 mm / 4.92 inches
Package Weight
0.2 kg / 0.44 lbs
Compatible products
Downloads
SPECIFICATIONS
SPECSHEET ACCESSORIES - ENG
PDF
296 KB
20-10-2025
