TOURING

HDL 26-A

ACTIVE TWO WAY LINE ARRAY MODULE

133 dB Max SPL
2000W Two-Way Amplifier
Exclusive FiRPHASE technology on-board
750 Hz Crossover for best vocal reproduction

RDNet

RDShape

FiRPHASE

Where to buy

Features

133 dB Max SPL
2000W Two-Way Amplifier
Exclusive FiRPHASE technology on-board
750 Hz Crossover for best vocal reproduction
RDNet Networked Management
3” Titanium Compression Driver
2 x 6” High-Powered Neodymium Woofers
4 PATH waveguide

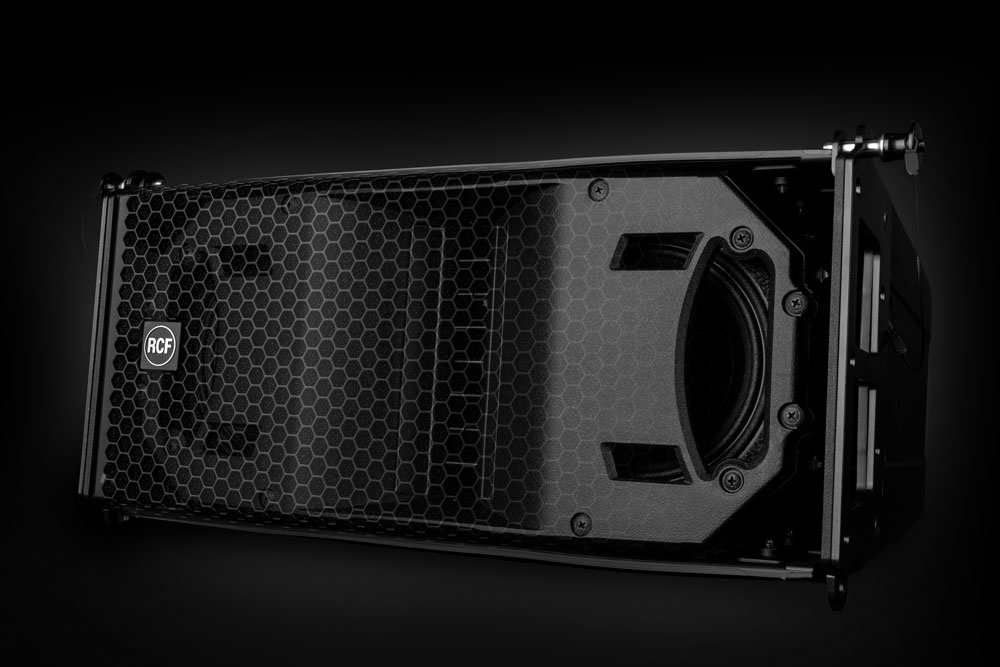

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

Crossover presets

Supported by	On products	Enable via
ACE	SUB 9016-AS SUB 9019-AS SUB 9029-AS	RDTap APP

Download RDNet

DOWNLOAD RDShape

Configurations

Quick lock PIN Table

Easy Shape Designer

Part number:

13000588
HDL 26-A
90-240V, Black, EU, EAN 8024530016845

13000606
HDL 26-A W
90-240V, White, EU, EAN 8024530017422

13000917
HDL 26-A
240V, Black, UK, EAN 8024530022464

13000964
HDL 26-A
90-240V, Black, US, EAN 8024530023447

13000965
HDL 26-A W
90-240V, White, US, EAN 8024530023553

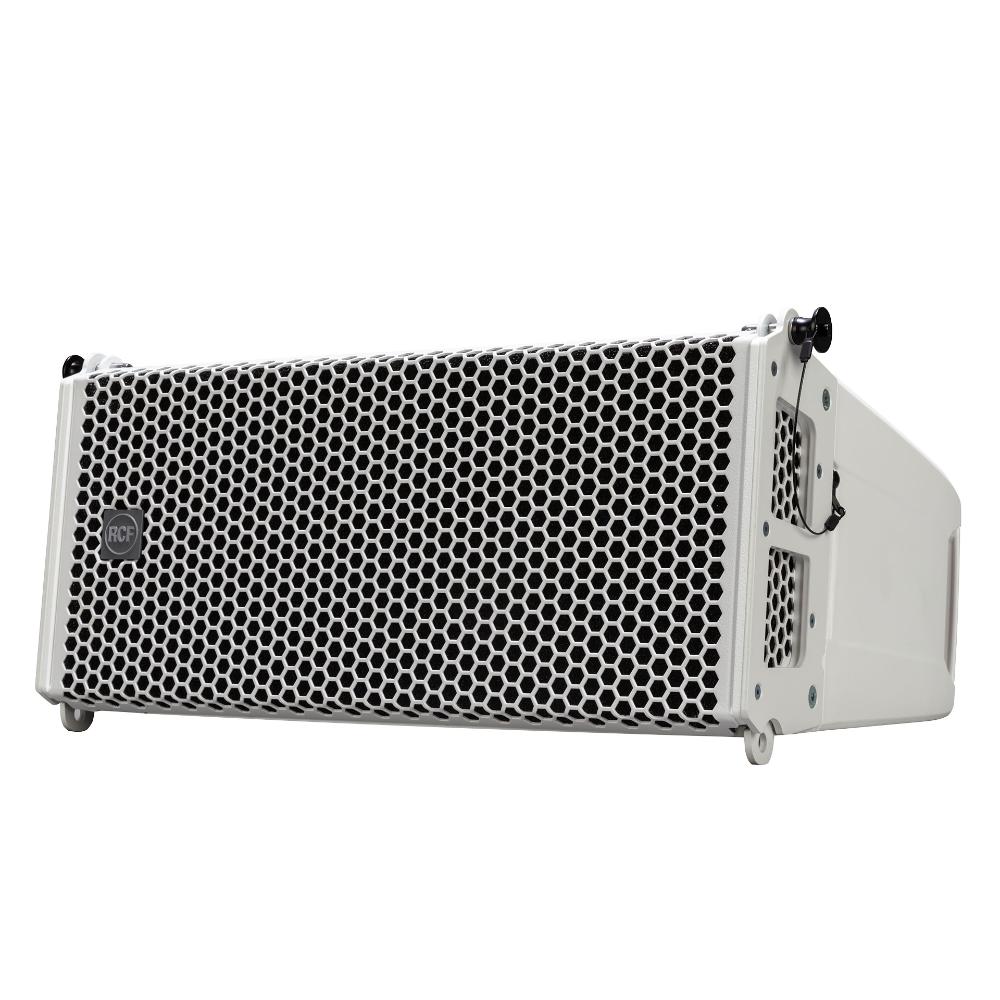

Black & white

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers — a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.

The acoustic beauty of symmetry

The symmetrical design of the cabinet produces identical left and right coverage of 100°x10°. Component positioning and the special DSP crossover of the HDL 26-A ensures constant directivity, reducing spots of break up or attenuation.

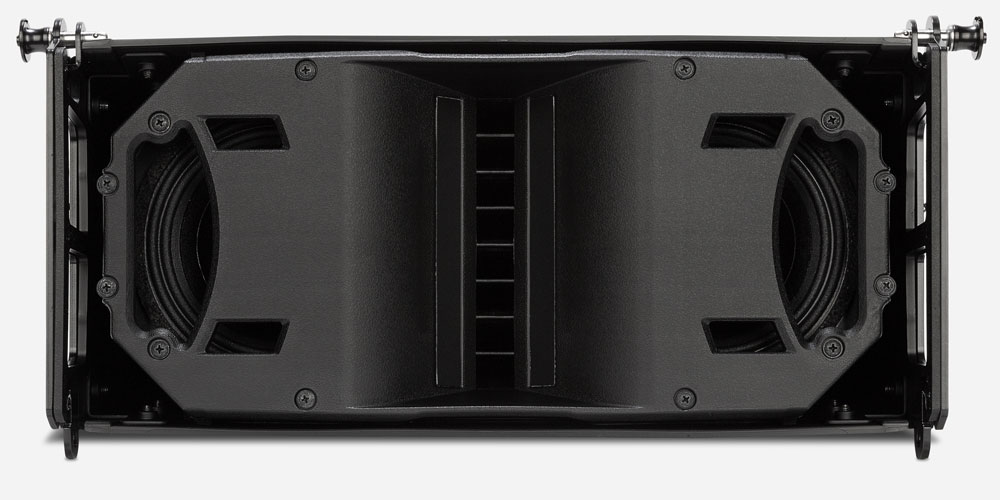

The front baffle provides:

Coplanar woofers
Controlled LF dispersion with hybrid-bandpass design
Central space to host the HF waveguide

Advanced design

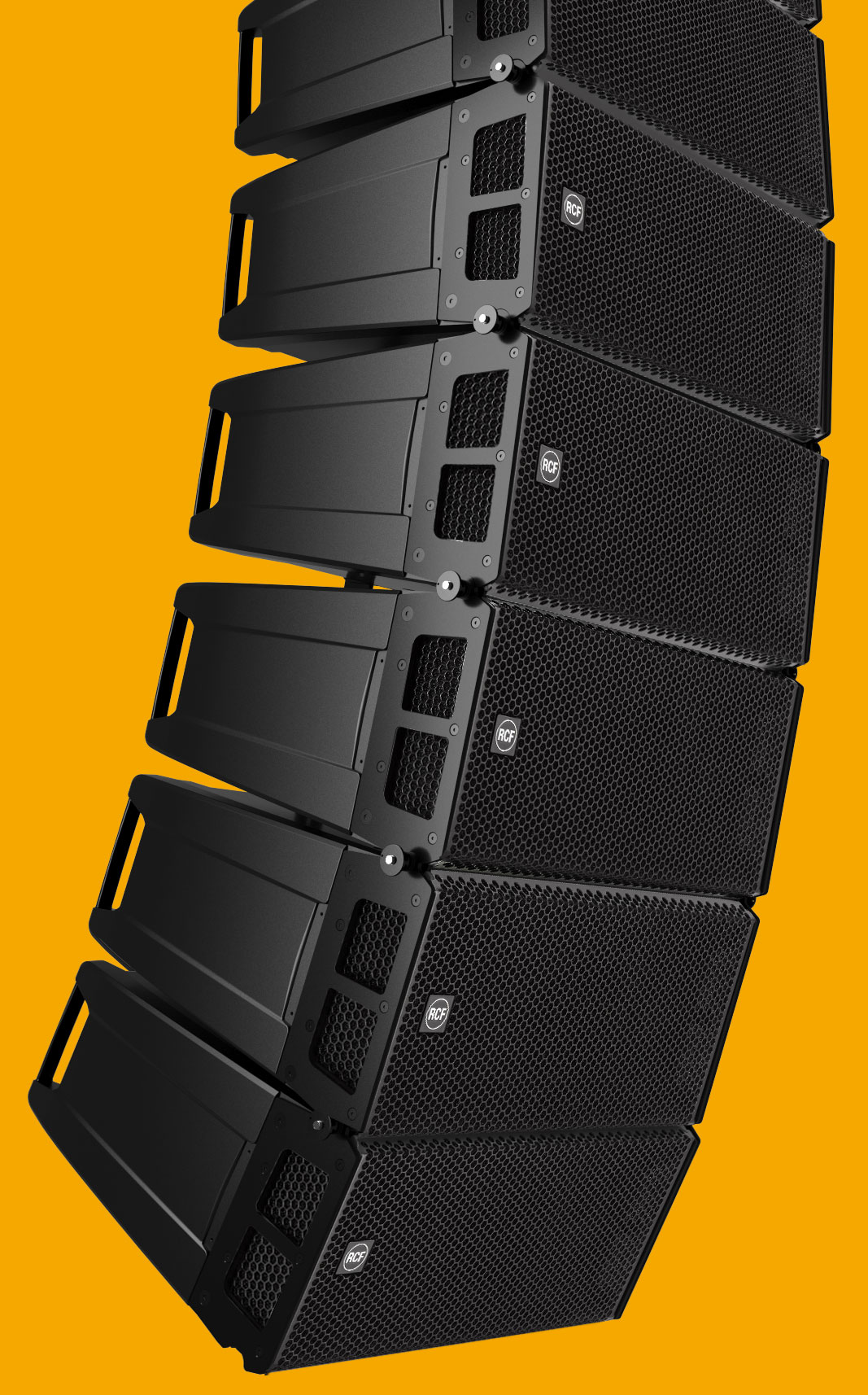

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.

The hardware is designed for easy and fast setup. Up to 16 HDL 26-A modules can be fastened on a single flybar.

The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Hybrid bandpass design

After many computer simulations, tests in anechoic chambers and listening sessions, the woofer arrangement in hybrid bandpass configuration results in wider and more coherent coverage, allowing a more effective frontal beam with only a few boxes. This arrangement increases the directivity of the line array, doubling the radiation points on low/mid frequencies. The shape of the baffle reduces the turbulence outside the waveguide decreasing the overall distortions.

Class-D power

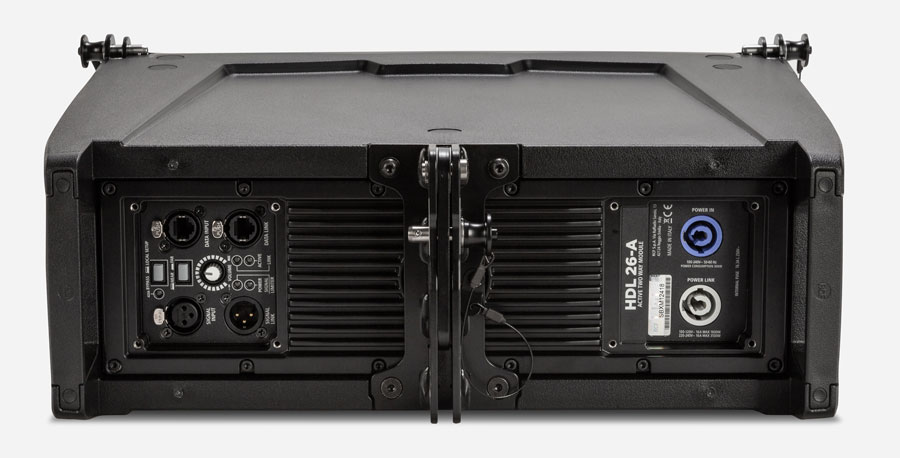

The amplifier is a central part of RCF’s product development. The HDL 26-A power section is tailored to the transducers and the cabinet design to reach excellent efficiency, low distortion and high signal-to-noise ratio. Class-D power amplifier technology operating at very low impedance produces extended transient response, while the high damping factor improves sound quality and detail. The amplifier module features +24 dBu input section, a solid machined aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. The low-latency DSP section deploys a remarkable amount of processing power for live performances with straight-forward control and monitoring of single parts of the module, including rigging angles and transducer performance via RDNet. An entire set of protections preserve product life and reliability.

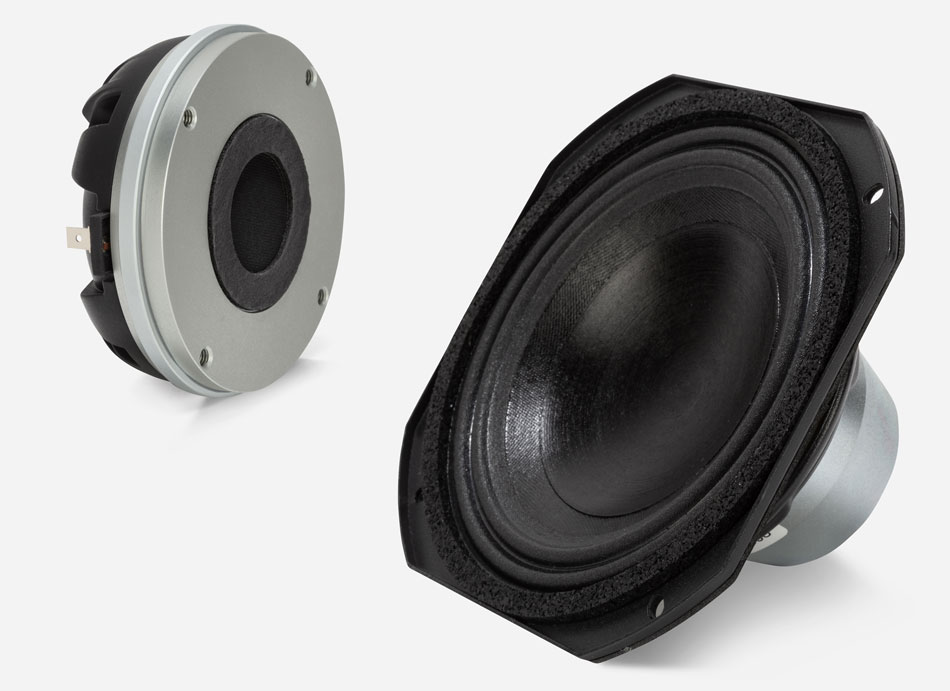

Legendary transducers

The RCF HDL 26-A features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component — starting from the power supply through the input board to the amplifiers and transducers right up to the complete HDL 26-A System.

High frequencies

High-performance RCF ND840
3.0-inch diaphragm titanium compression driver
1.4-inch exit throat
750 Hz Crossover Point

Low frequencies

2 X 2.0” voice coil neodymium 6” woofers
Low frequencies handling down to 55 Hz
Water resistant fiber doped cone
Polycotton M-roll surround
Hypervented magnetic structure

The ideal flyable bass complement

While the HDL 26-A is designed for the best speech intelligibility and background music, a correct musical response requires low distortion and high power on low frequencies.
The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.
It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The hardware is designed for an easy and fast setup, completely compatibile with HDL 26-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. A rain cover is also available.

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

PRECISION SYSTEM DESIGN AND SIMULATION

RDShape is a 3D sound system design and acoustic-simulation platform for RCF and TT+ Audio speakers and subs. It enables touring pros, venue designers, and engineers to virtually lay out rigs, predict coverage and sound pressure level (SPL), verify rigging safety, and export system documentation.
