KPS SERIES

MULTICHANNEL DSP AMPLIFIERS

Adaptable. Expandable. Controllable. Remarkable.

High-density installation-specific multichannel amplifiers with adaptable power allocation across outputs, advanced DSP processing and flexible matrix routing.

Quality Power for Fixed Installation

KPS amplifiers deliver superior audio performance and exceptional reliability for fixed installations. Designed to integrate seamlessly with RCF passive speakers, they include a comprehensive set of ready-to-use presets to simplify setup and ensure optimal sound quality. Installation-specific features enhance usability and efficiency, including advanced system status monitoring for proactive maintenance, GPIO connectivity for expanded control capabilities, flexible signal routing for customized installations, and complete integration with RCF’s proprietary RDSpace management platform. Engineered for ease of deployment and precise control, KPS amplifiers provide installers and integrators with robust solutions tailored to meet diverse audio system requirements.

Multipurpose Sound Solutions

KPS amplifiers combine modern design, advanced processing, and quality audio for versatile AV applications.

SMALL SHOPS

Clear background music for small retail and service environments.

LARGE RETAIL STORES

Consistent, quality audio across extensive multi-zone retail spaces.

BARS AND RESTAURANTS

Flexible audio zoning for venues with multiple areas or programs.

FITNESS CENTERS

High-power, flexible audio for varied fitness environments.

CORPORATE SPACES

Efficient audio solutions for offices, meeting spaces, and communal areas.

HOUSES OF WORSHIP

Clear amplification for speech intelligibility over large spaces.

THEME PARKS

Highly intelligible, evenly distributed sound across expansive grounds.

SPORT FACILITIES

Powerful, evenly covered sound that keeps every seat in the game.

Intelligent Power Allocation

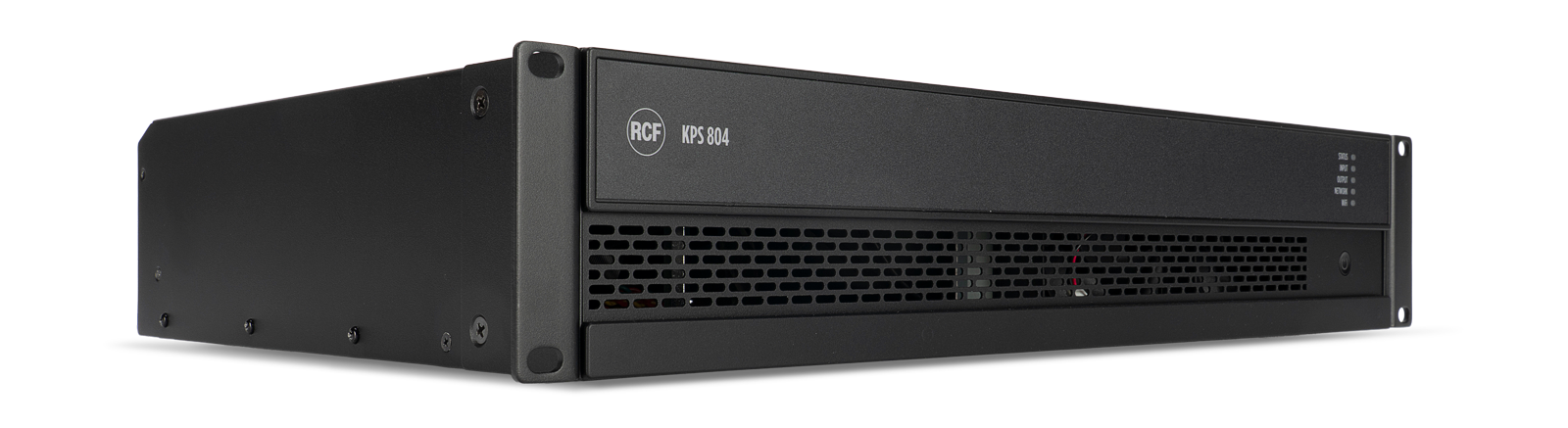

The KPS Series delivers class-leading power density, packing four independent 160 W RMS channels into a compact 1 U, half-rack-width chassis. Its intelligent power-sharing architecture can re-allocate up to 300 W to any individual channel, giving installers the freedom to distribute power asymmetrically across outputs without engaging bridge mode or sacrificing channel count—perfect for optimising headroom when driving RCF loudspeakers.

Quality Sound

1 SPEAKER OUTPUTS
Speakers’ outputs allow either a two channels connection for Low-impedance speakers or a single 70 / 100 V line for speakers equipped with line transformers.

2 BALANCED AUDIO INPUTS

3 UNBALANCED AUDIO INPUTS
Connected in parallel with the balanced inputs.

4 DIGITAL S/PDIF INPUT/OUTPUT
This digital signal can be routed from any input or zone and allows to daisychain two or more KPS amplifiers.

5 CONFIGURABLE GPIO
Set of 5 GPIO that can be configured in the RDSpace software to perform the following functions: Stand-by, Mute and Volume control.

6 LAN CONTROL PORT
KPS amplifiers can be connected to a LAN via a standard Ethernet connection, allowing to access the device for configuration and control via RDSpace software.

7 DANTE PORT (OPTIONAL)
KPS “D” models are compatible with Audinate Dante® audio over IP (AoIP) networks and installations.

Control Software Platform

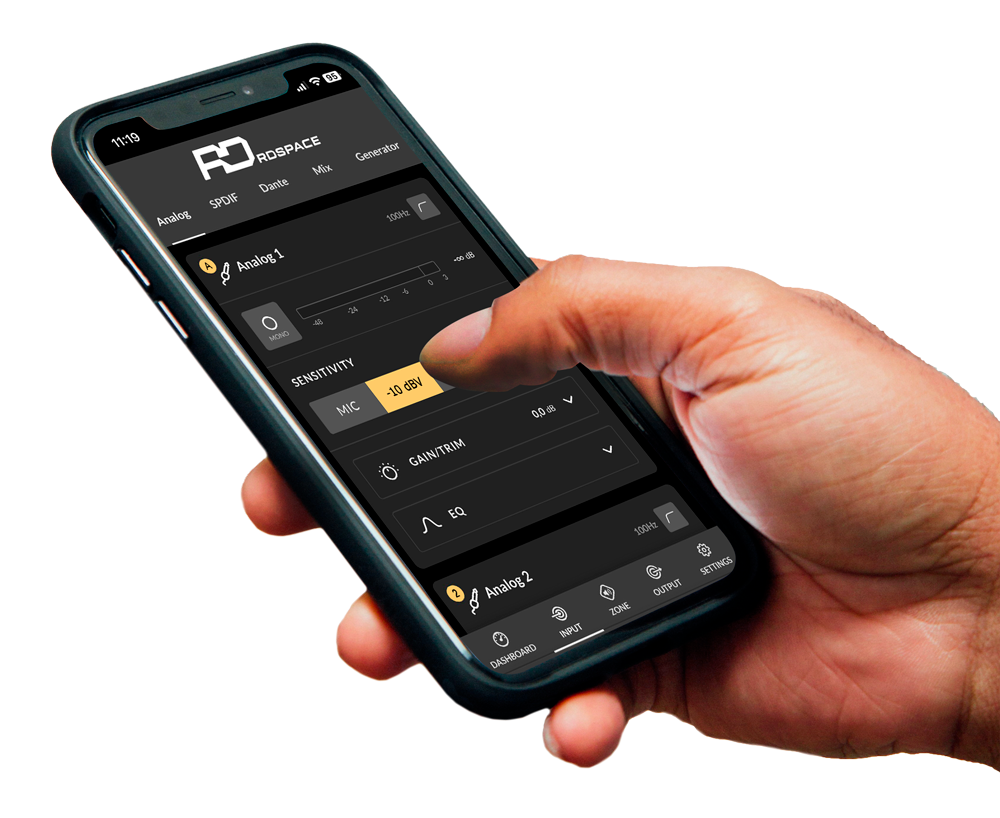

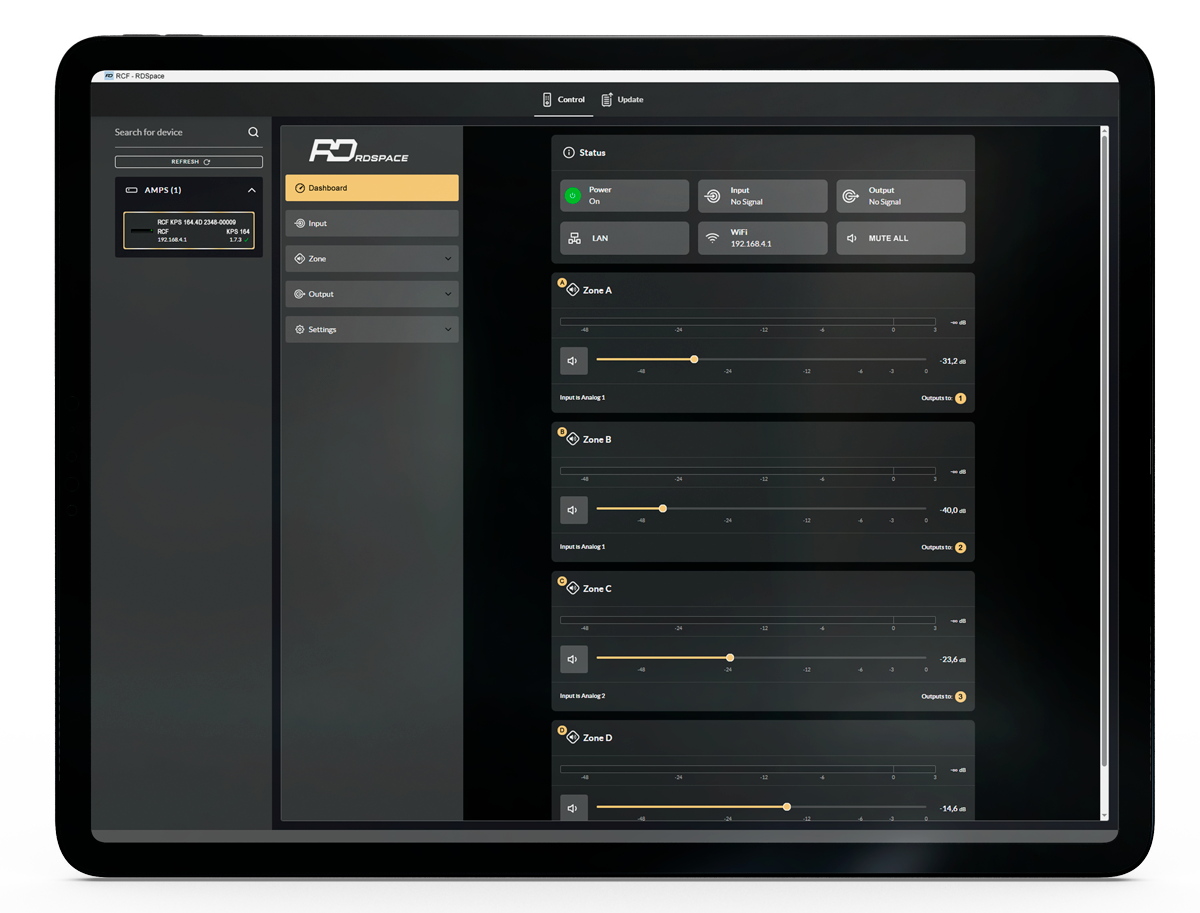

RDSpace is an adaptive software for KPS Series management. The software is available for macOS/Windows platforms, or as a web app connecting the browser (from smartphones or computers) directly to the amplifier.

Through a single interface, users can handle every stage of deployment—input routing, zone definition, output optimization, and speaker calibration—with real-time monitoring. The software scales smoothly from small venues to large, multi-zone networks, giving operators quick access to presets or deeper configuration tools as the project demands.
RDSpace allows management of linear-phase FIR filtering, speaker presets and user presets, flexible routing, parametric EQ, precision delay, and full device control. All configuration and monitoring take place in a single application, with the same unified interface, giving operators complete command of the entire audio system from every screen.

Features

Input mixing
Speaker presets
Multi-Zone setup
End-user control
Priority and ducking
Input and output EQ
S/PDIF output routing
High-pass filter
Compressors
Limiters
Delay
In-room controller configuration

download software

Multi Zones Wall Controller

The RC KPS is a wall-mounted, networked PoE controller designed for RCF KPS amplifiers that provide input selection and volume control. Its minimalist design uses high-performance polymer with a touch-friendly matte finish and concealed screws and offers dark and light display color schemes, brightness settings, and button backlight options, supports instant network pairing and configuration via RDSpace.

PoE for easy network pairing
Up to 8 x RC KPS per KPS amplifier
Allocate any RC KPS to any sound zone – set-up via RDSpace
Quick source selection and level management
PIN code protection
EU and US versions in white (RAL 9003) and black (RAL 9005)

Global Operational Safety

A universal, regulated switch-mode power supply (SMPS) with Power Factor Correction (PFC) and integral standby converter automatically adapts to any mains voltage from 100 V to 240 V, 50 – 60 Hz, delivering stable power worldwide. Comprehensive protection circuitry shields the unit from short circuits, DC offsets, high-frequency faults, undervoltage, excessive temperature, and overload conditions.

Discover KPS Series
