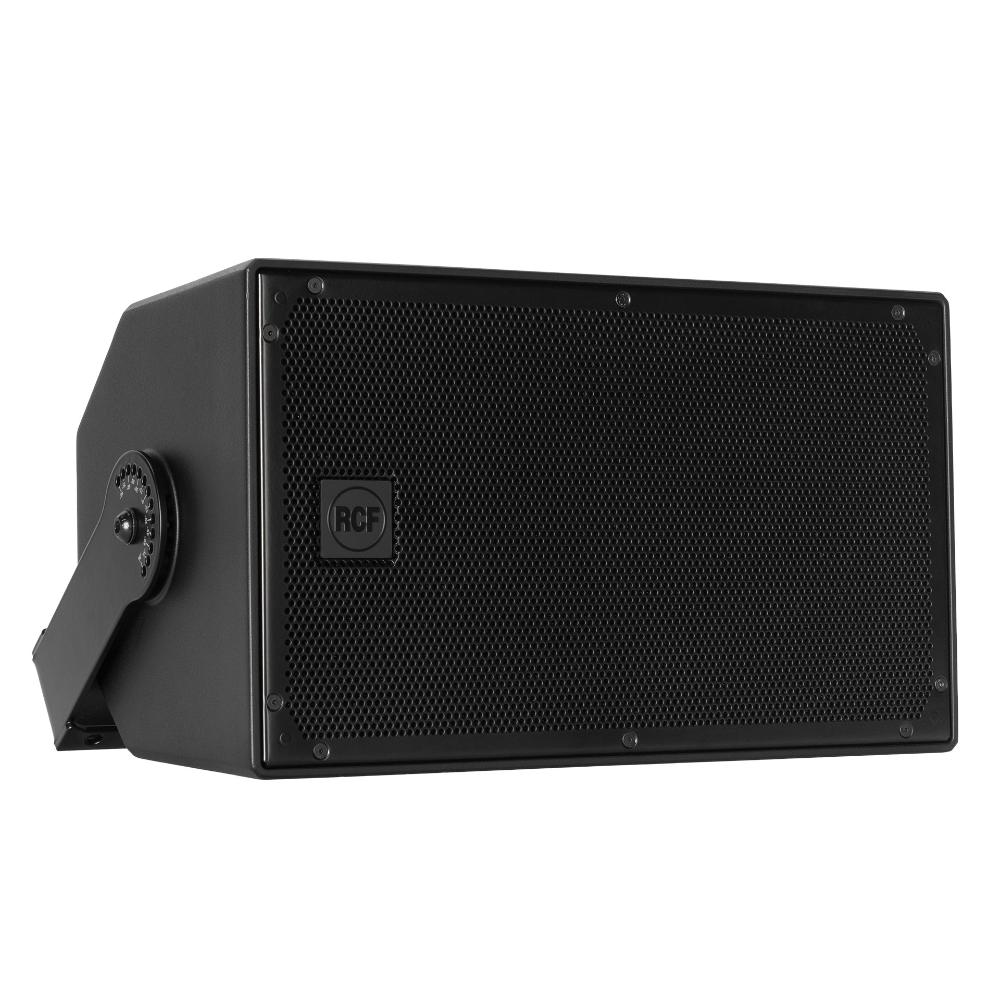

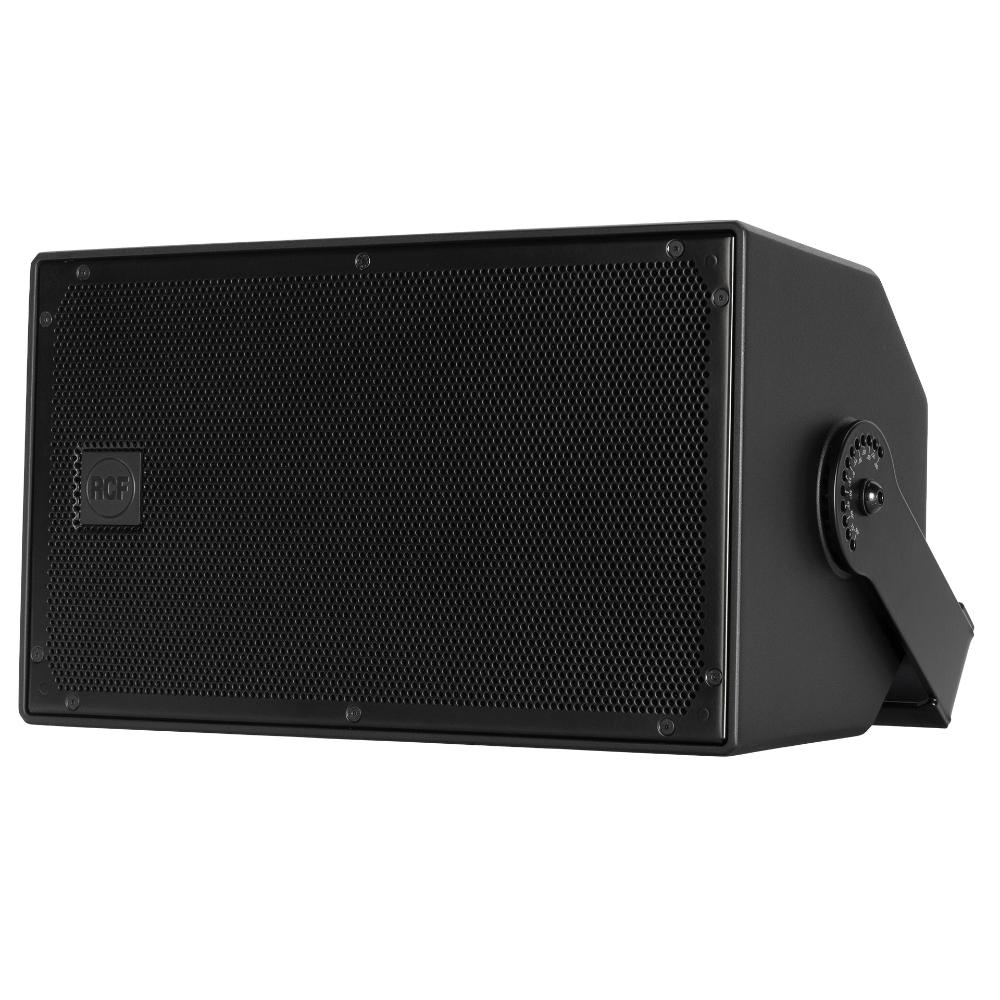

X 08 TWO-WAY PROFESSIONAL SPEAKER
NEW
INSTALLED
X 08
TWO-WAY PROFESSIONAL SPEAKER
- 128 dB max SPL
- 1 x 8" neo woofer, 2.5'' v.c.
- 1 x 1.75" v.c. neo compression driver
- 100° x 100° constant directivity coverage angle
All-weather Performance
Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

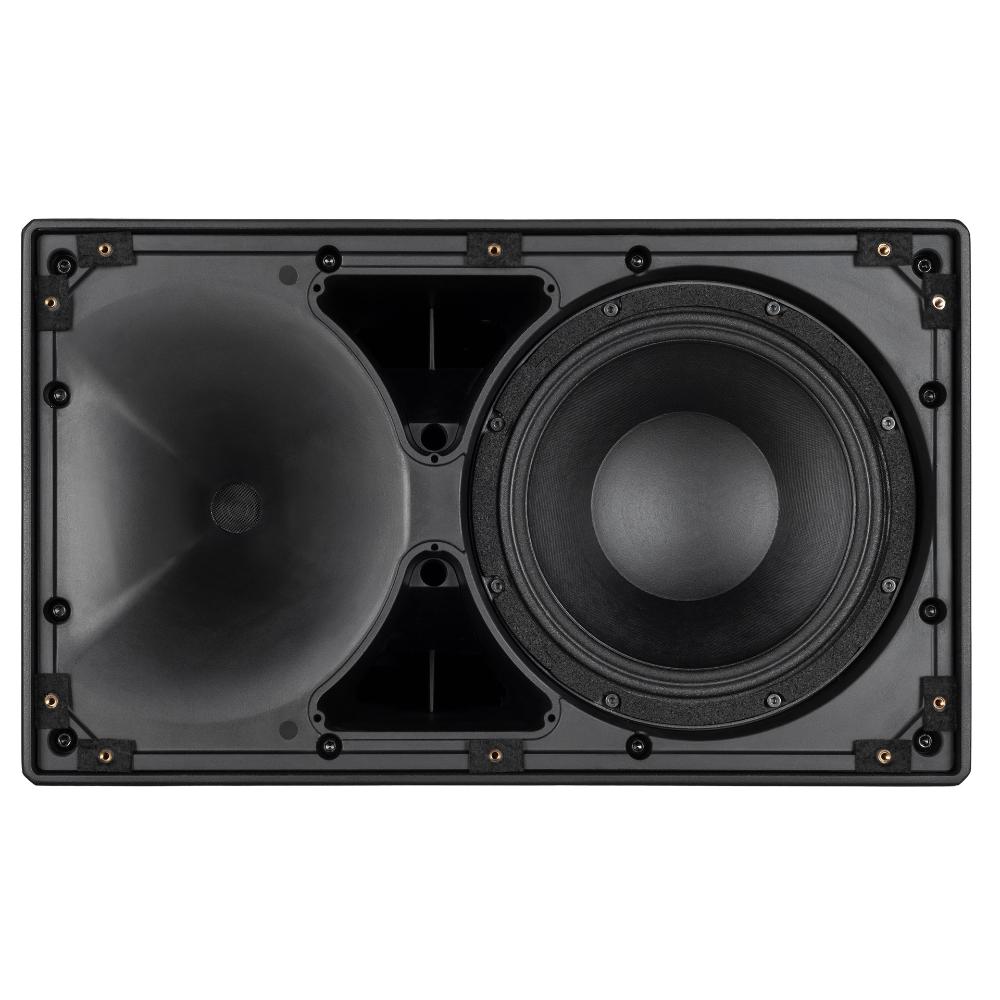

TRW Waveguide
The new True Resistive Waveguide (TRW) is the result of extensive refinements in the design of the transducers, enclosure, and vented ports—developed together as part of a fully integrated system. Combined with FiRPHASE processing, the TRW enables the speaker to act as a single coherent source, delivering a precise and stable sound image. Acoustically, the waveguide behaves as a pure resistive load—free from resonances—significantly reducing high-frequency distortion typically associated with conventional horns.
LICC - Low Impedance Compensated Crossover
X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.
Recommended Power Amp
XPS SERIES
Polyurethane: the ultimate in durability
Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.
Polyurethane: the ultimate in durability
Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.
Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Acoustical specifications
Frequency Response (-10dB)
70 Hz - 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
100°
Vertical coverage angle
100°
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
400 W RMS
Peak Power Handling
1600 W PEAK
Protections
Dynamic Active Mosfet
Crossover Frequencies
2000 Hz
Recommended Amplifiers
XPS 16K, XPS 16KD, DMA 504

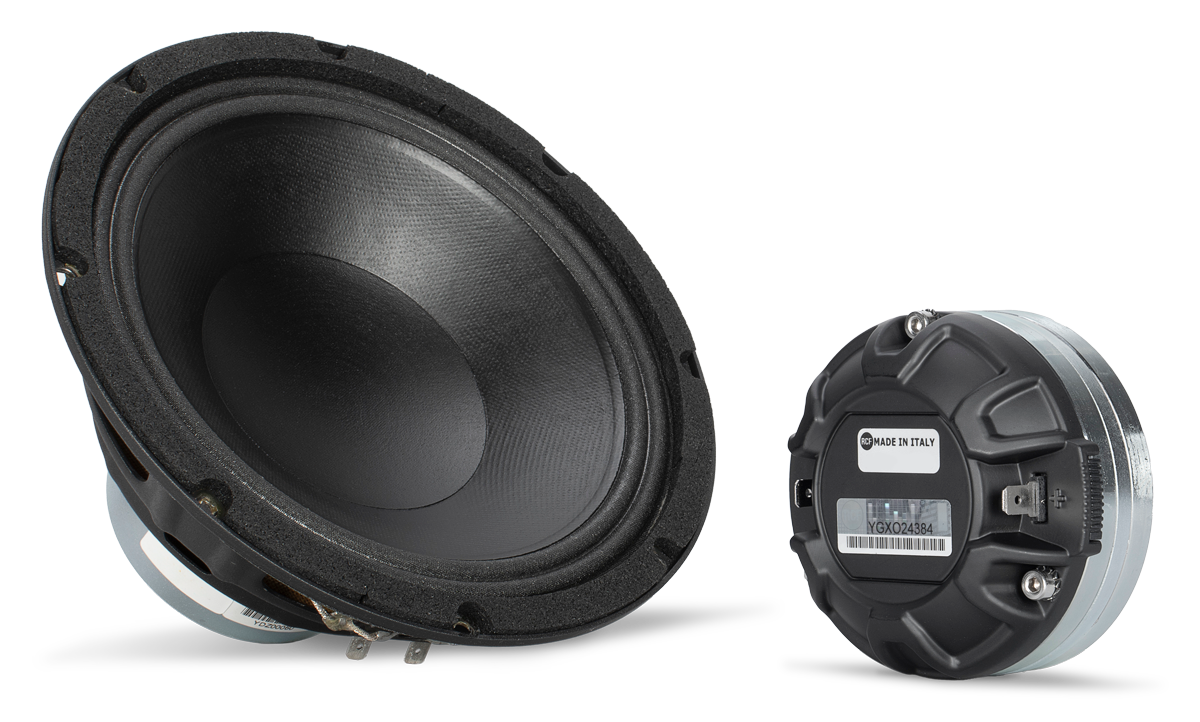

Transducers
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Woofer
1 x 8'' neo, 2.5'' v.c

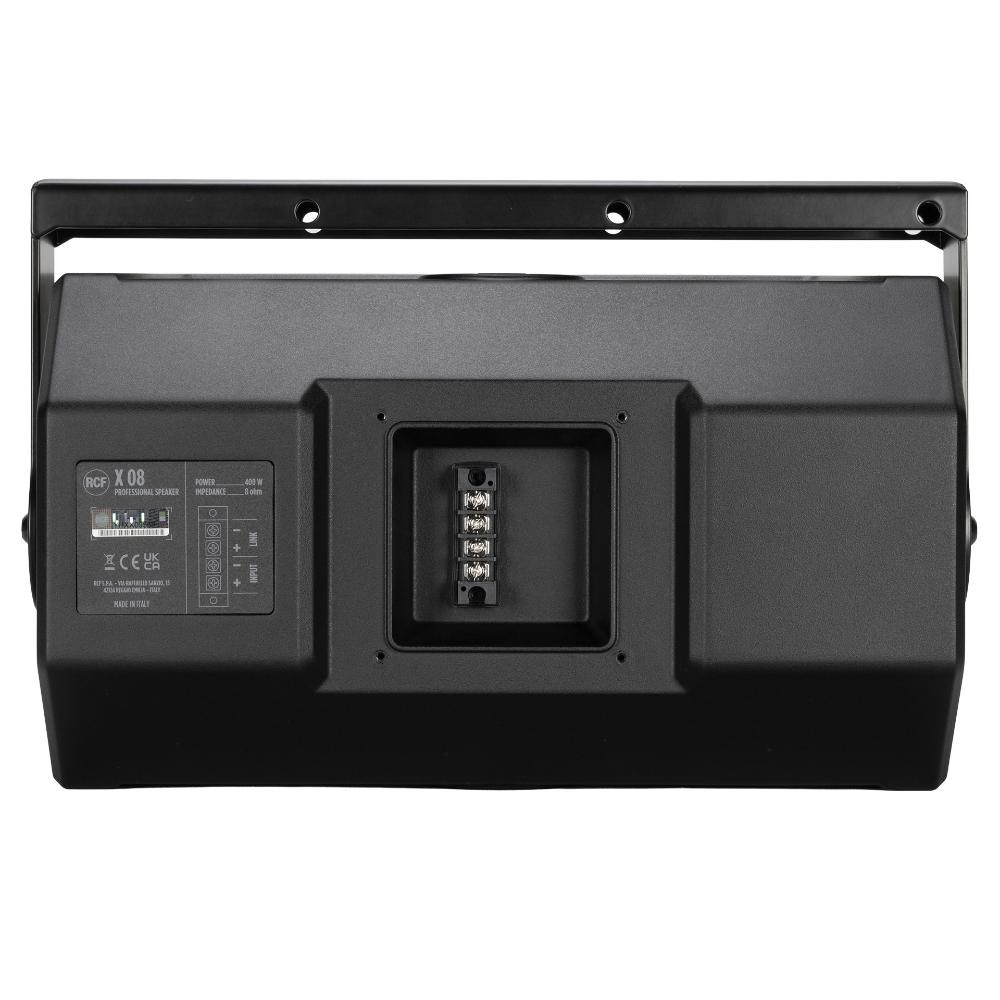

Input/Output section

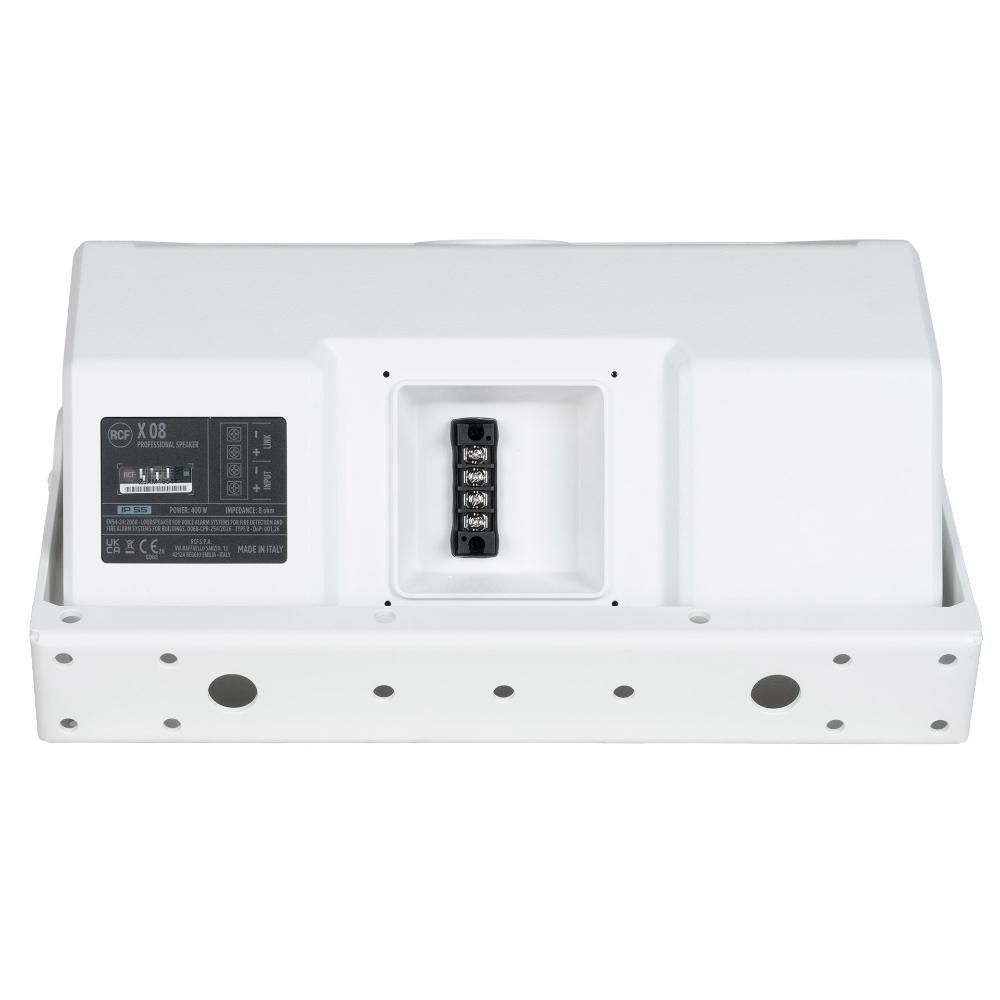

Input connectors
Screw Terminals
Output connectors
Screw Terminals
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Structural Polyurethane

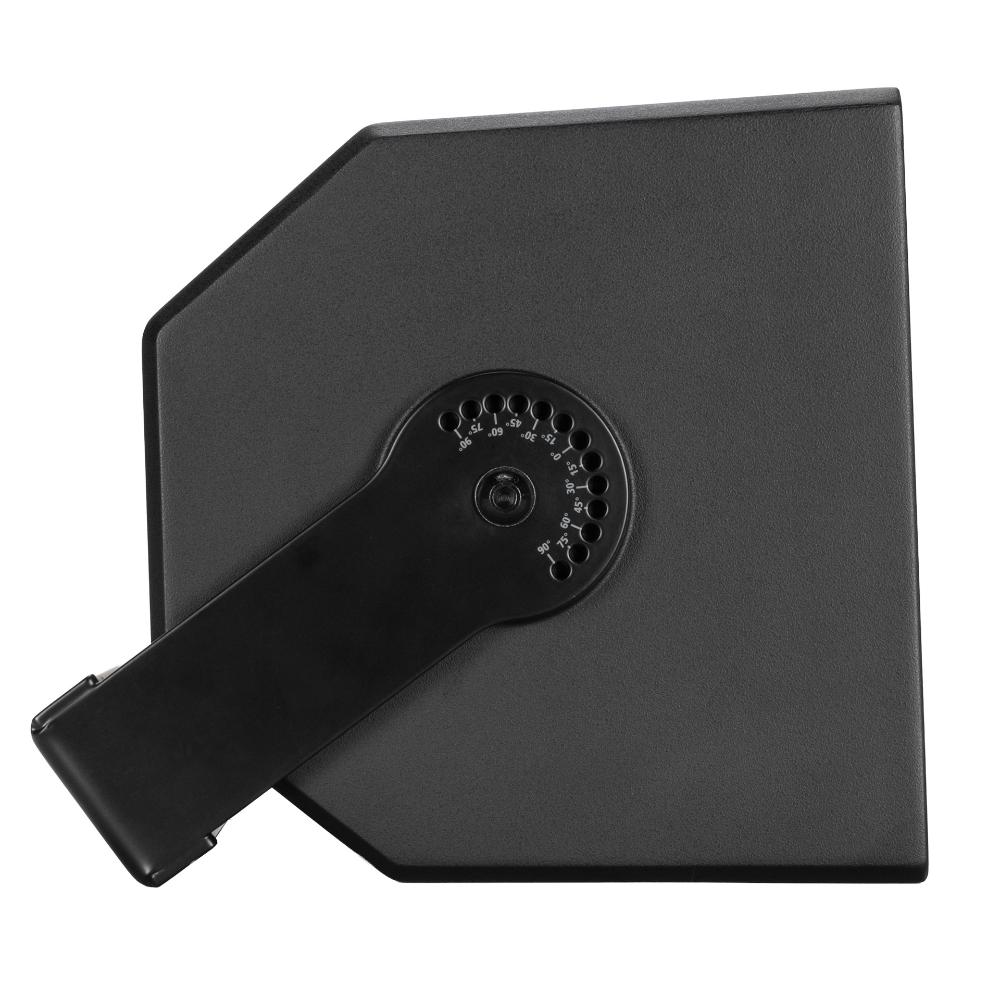

Hardware
2 x M10 (top-bottom)
2 x M10 (sides)
2 x M10 (sides)

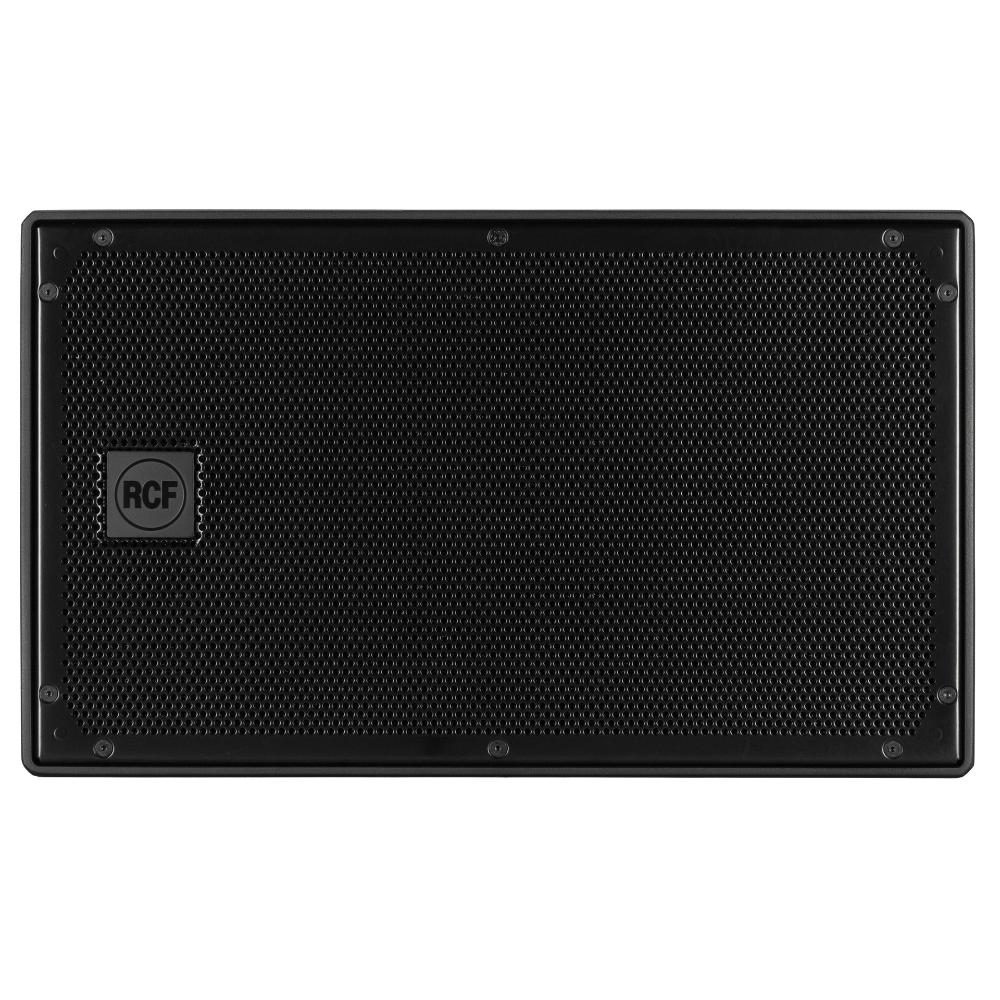

Grille
Aluminum with water-repellent protection
Color
Black - RAL 9005
Size / Weight
Height
260 mm / 10.24 inches
Width
436 mm / 17.17 inches
Depth
251 mm / 9.88 inches
Weight
9.95 kg / 21.94 lbs
Shipping information
Package Height
310 mm / 12.2 inches
Package Width
500 mm / 19.69 inches
Package Depth
290 mm / 11.42 inches
Package Weight
13.5 kg / 29.76 lbs
MANUALS
STANDARD COMPLIANCES
SOFTWARE

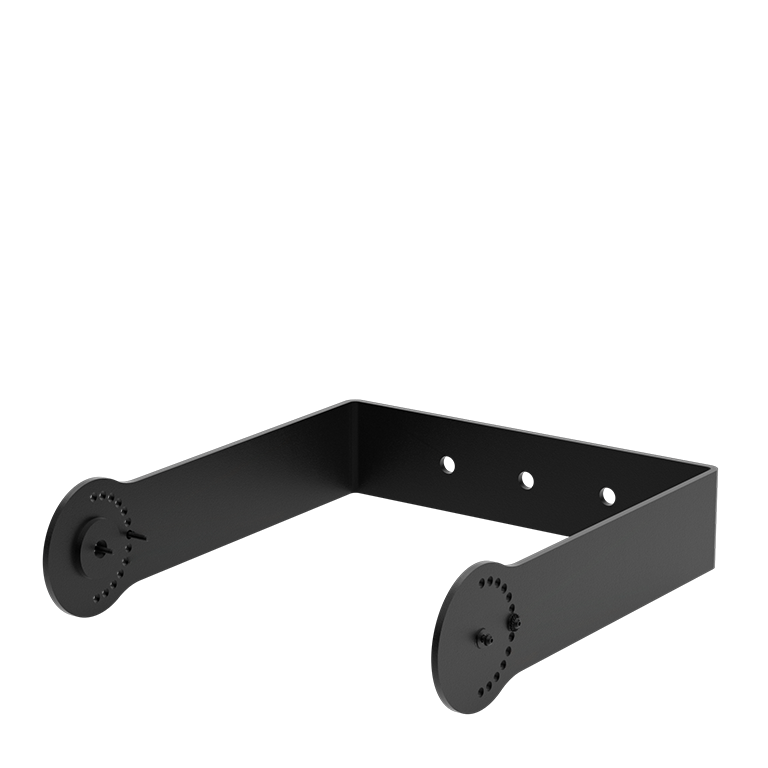

RIGGING / MOUNTING
