BUSINESS MUSIC INSTALLED

S 08-A

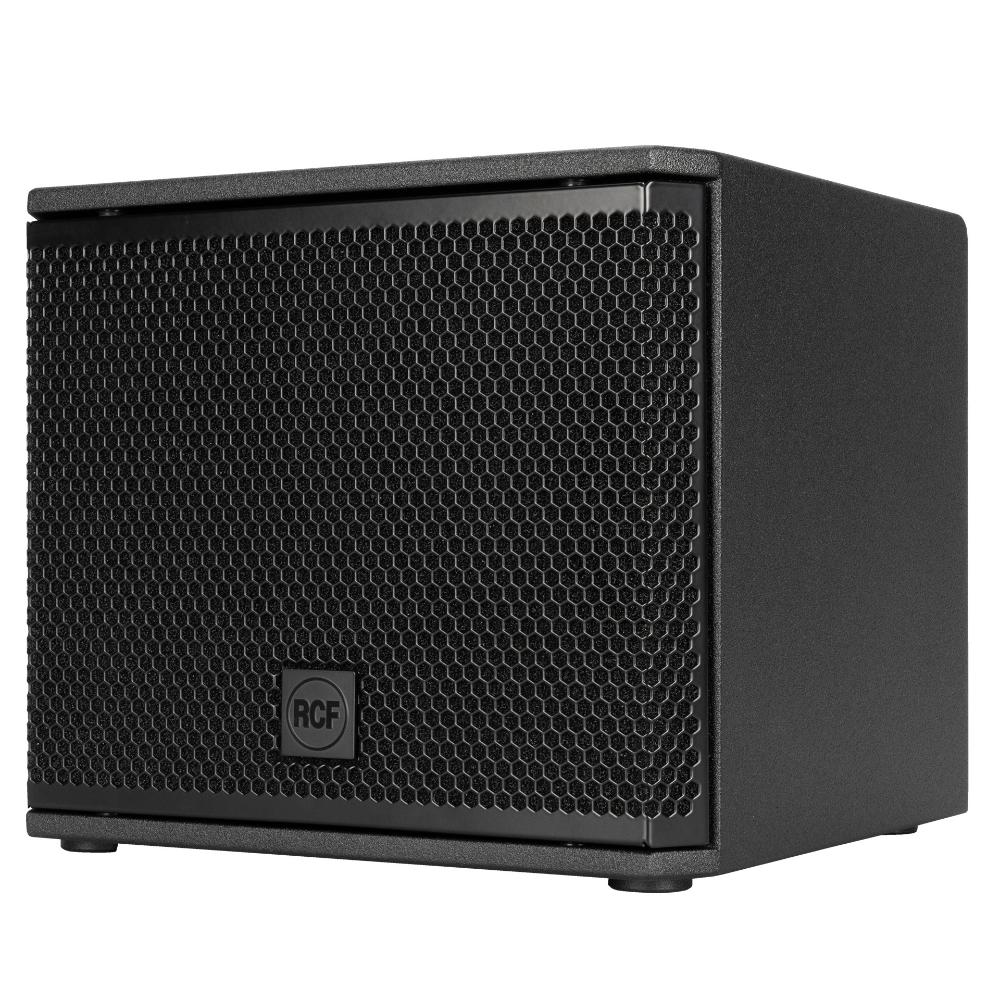

ACTIVE 4 CHANNELS AUDIO SYSTEM

4 x 250 W Class-D power amplifier
20 ÷ 20000 Hz frequency range
On-board processing (8 different equalizations)

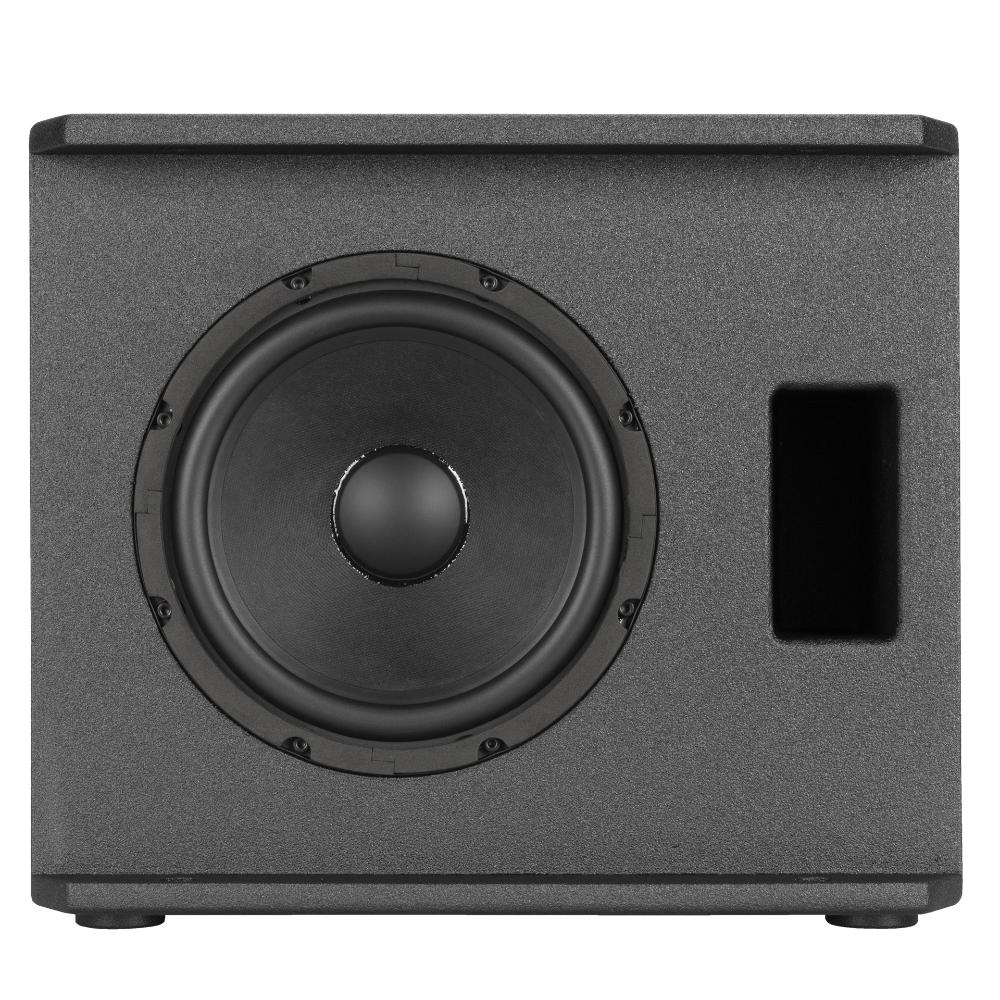

Integrated 8'' subwoofer (1.5'' v.c.)

Bluetooth®

Where to buy

Features

4 x 250 W Class-D power amplifier
20 ÷ 20000 Hz frequency range

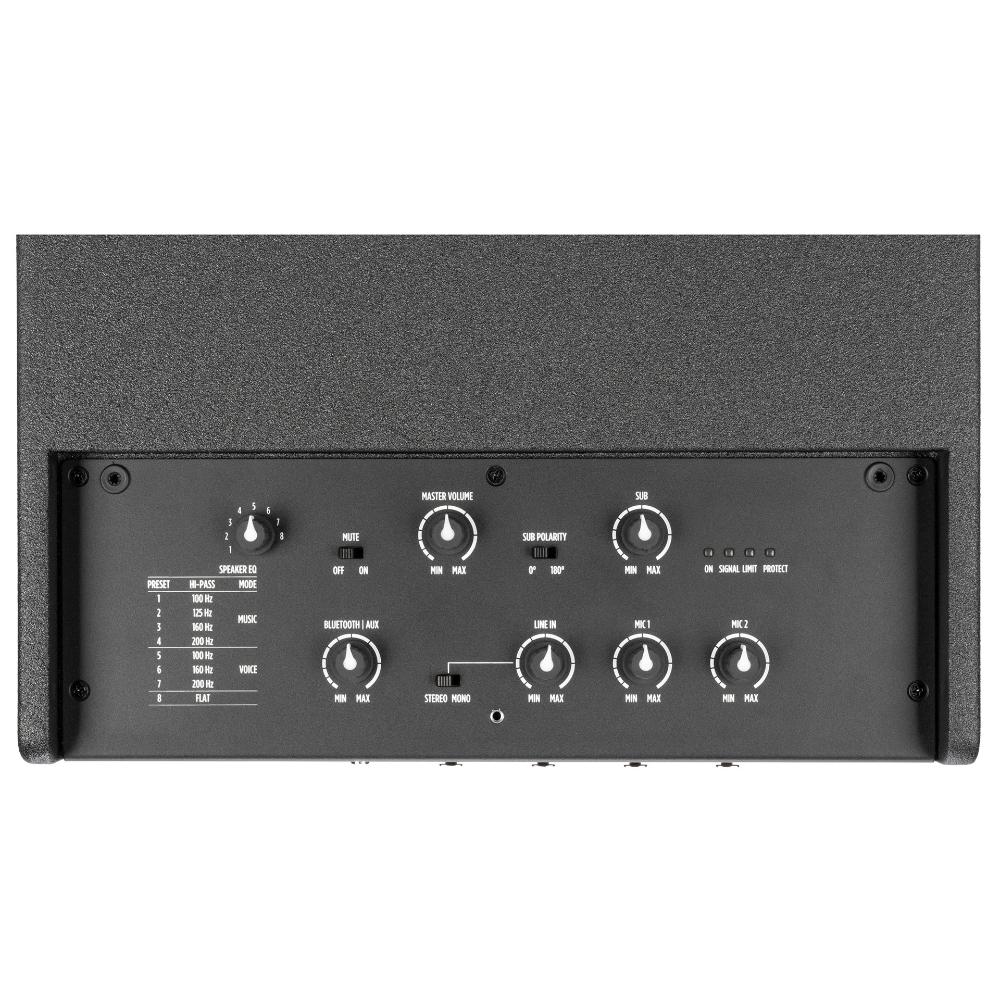

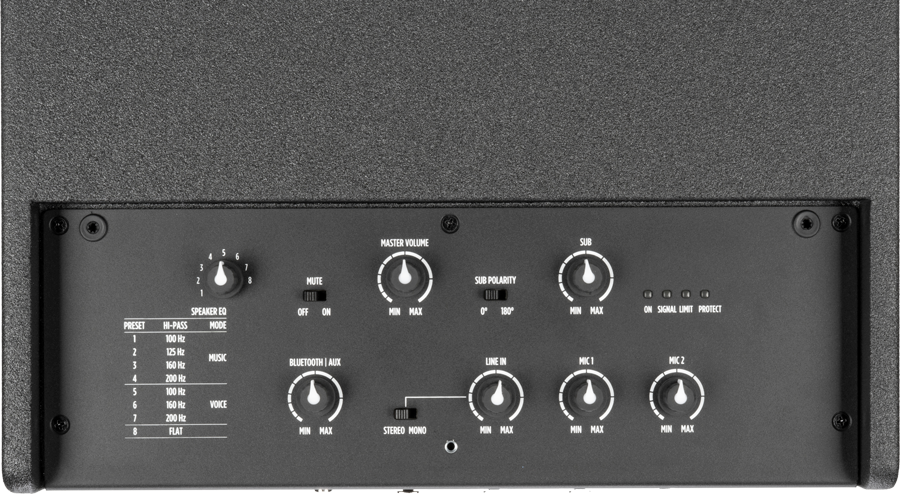

On-board processing (8 different equalizations)
Integrated 8'' subwoofer (1.5'' v.c.)

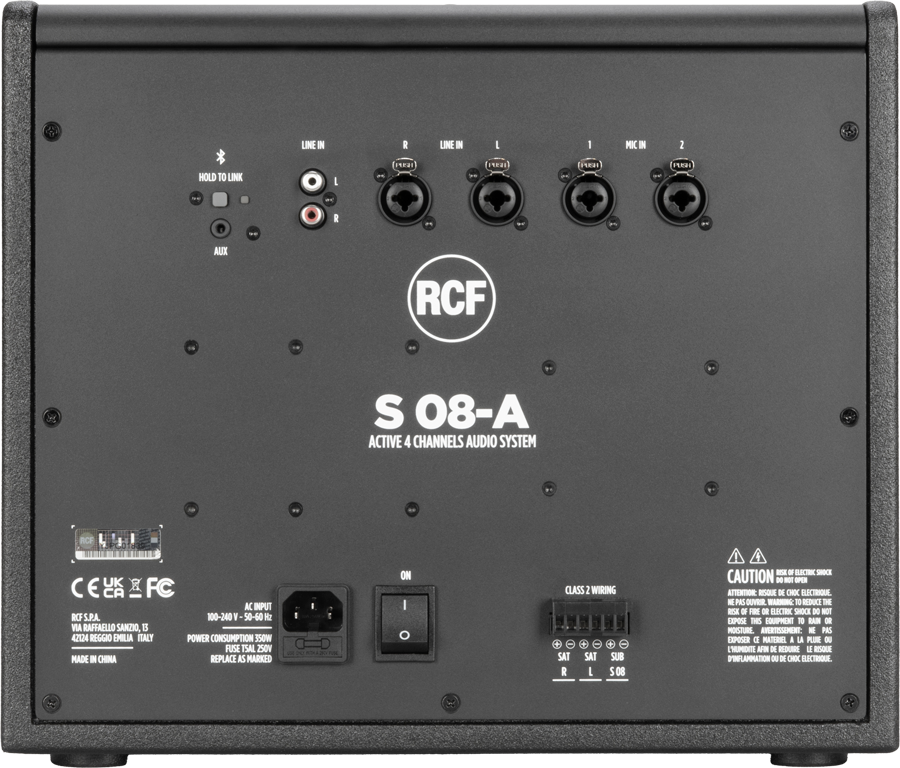

3 line inputs and 2 mic inputs
Bluetooth audio streaming
High quality plywood cabinet
Steel front grille with clothing
6 pole EUROBLOCK connector

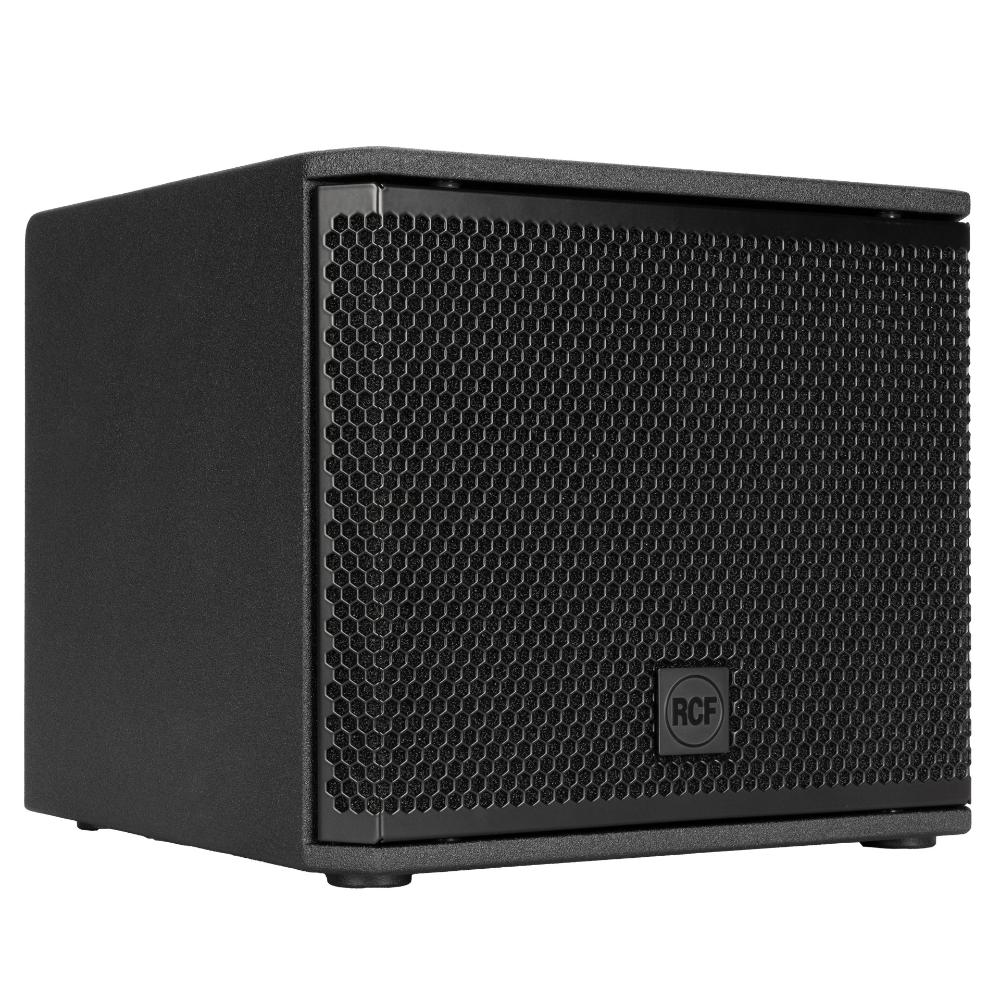

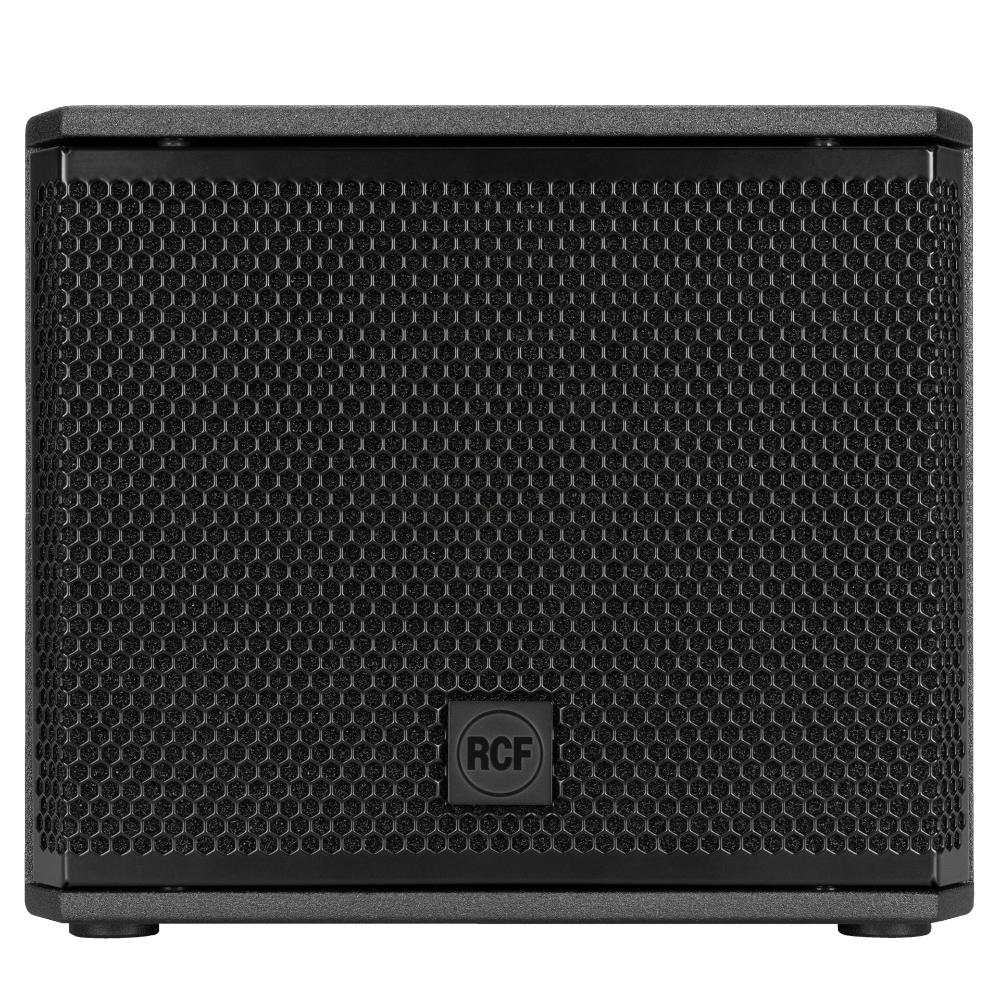

S 08-A is a self-powered audio system providing all those features required for a complete environment sonorization. It features a four channel class D amplifier able to power the integrated 8’’ woofer, 2 satellites lines for both mono and stereo applications, and an additional passive S 08 subwoofer. Line and mic inputs can be mixed in an optimized way balancing each single level. Bluetooth connectivity allows audio streaming from any mobile device, and comes alongside traditional RCA, combo XLR and 3.5mm jack connectors. S 08-A offers 8 different equalizations, optimized for music and voice reproduction. Specific HI-PASS filter values allow to combine the system with a wide range of RCF speaker models, ensuring high application flexibility.

NEW

Part number:

13000936
S 08-A
EU, EAN 8024530024000

Powerful lows

RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience.

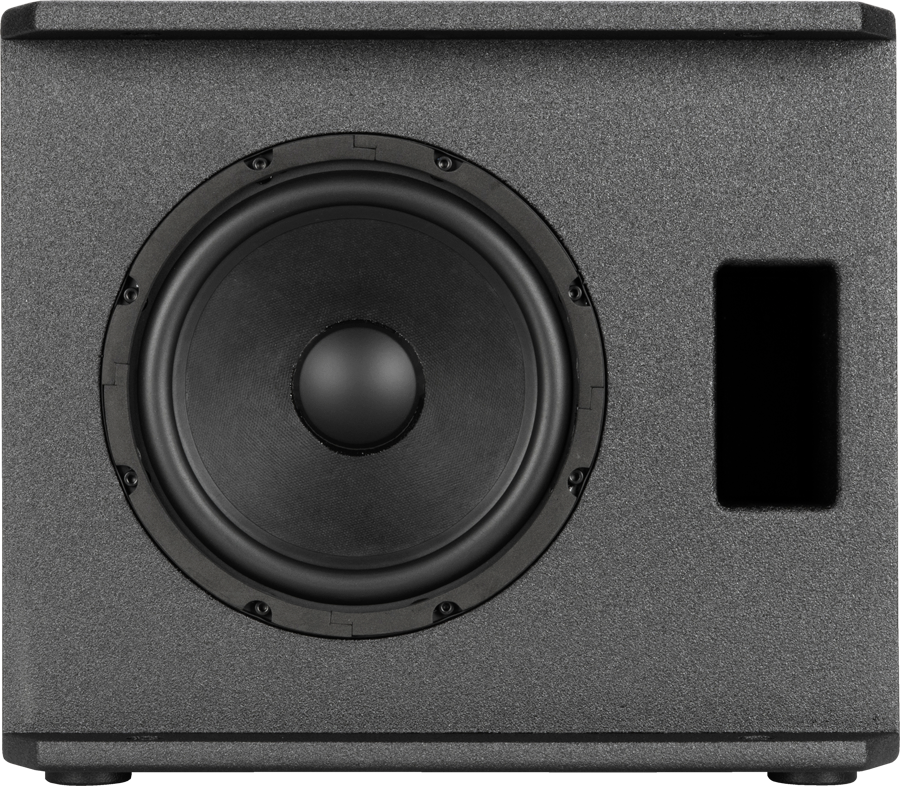

State of the art transducers

From 8” to 19” cone size, S Series low-frequency transducers are the result of the latest refinements in cone-transducer production, resulting in a fast and controlled reproduction of the bass frequency range.

Integrated Bluetooth

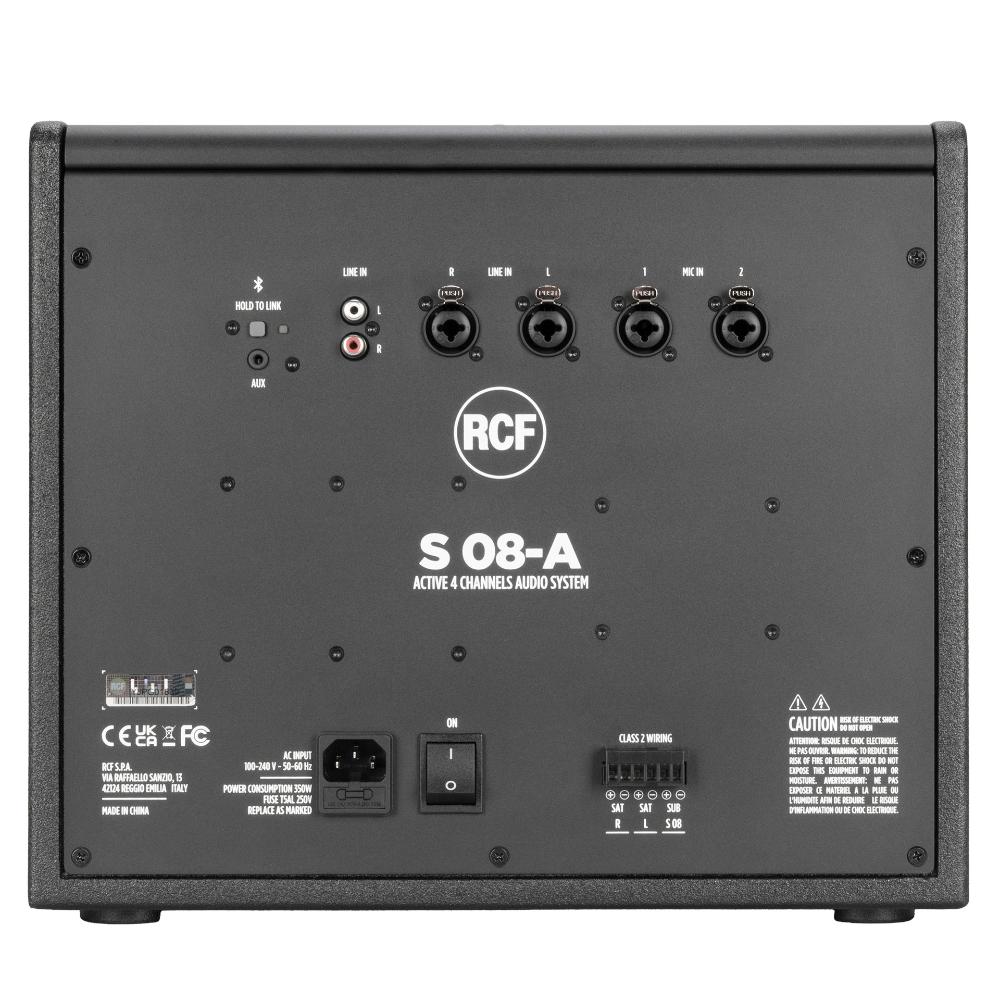

Bluetooth connectivity allows audio streaming from any mobile device, and comes alongside traditional RCA, combo XLR and 3.5mm jack connectors.

Multipurpose sound

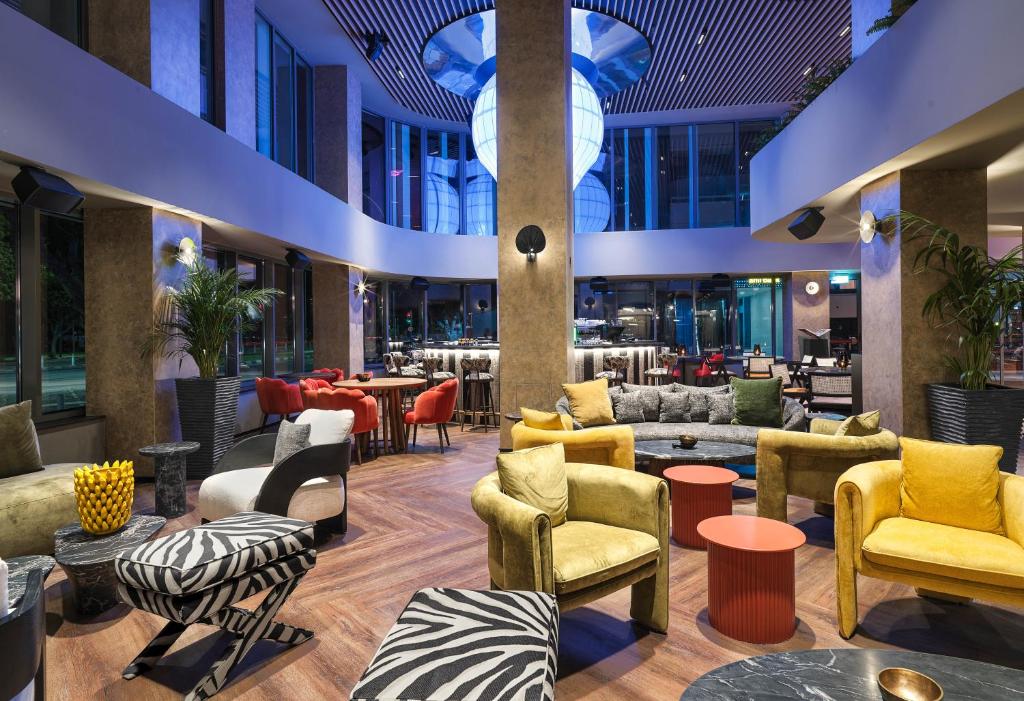

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.

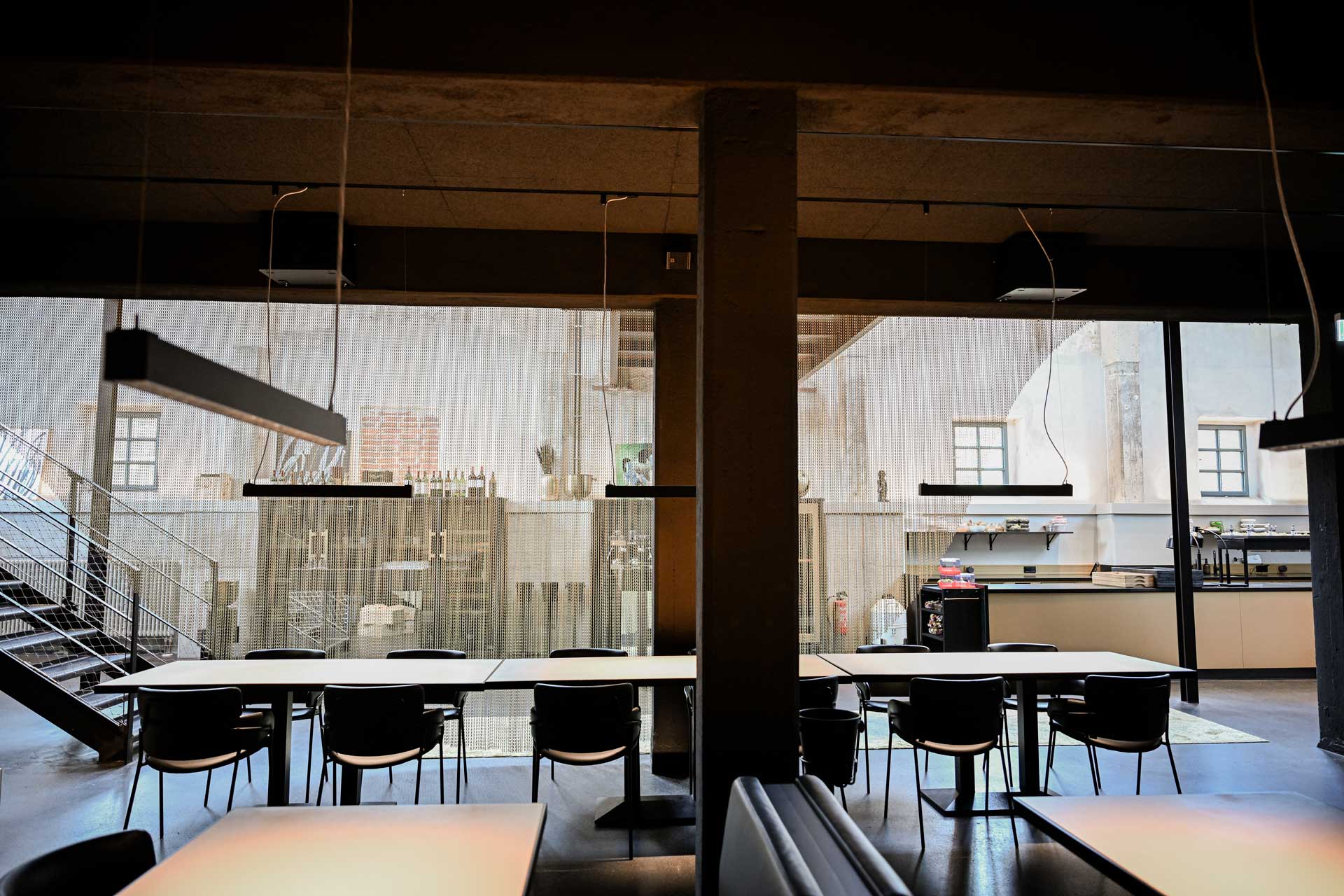

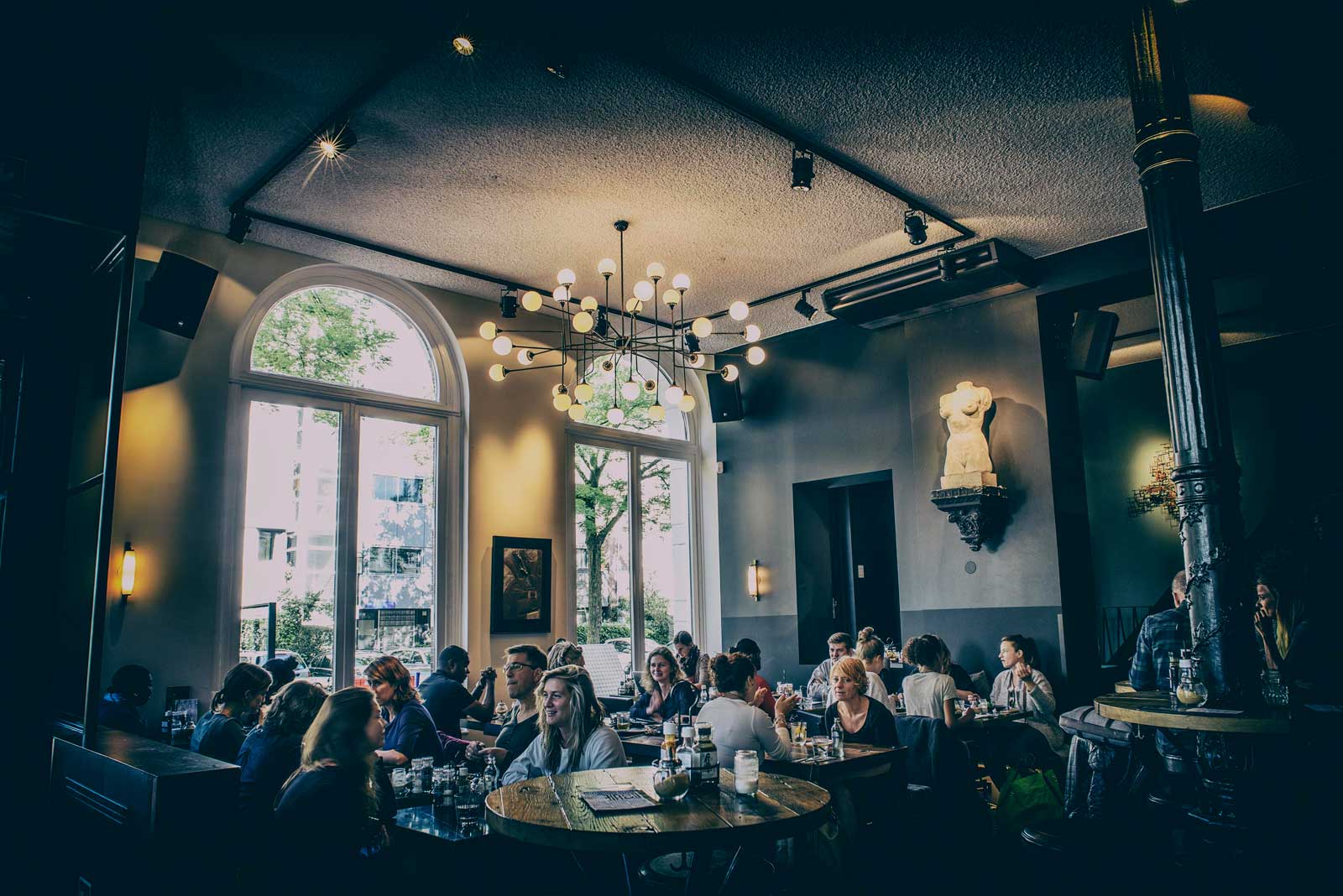

Improve the audio atmosphere

Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.

Amplifier specifications

Amplifier Class

Output Power

4 x 250 W @ 4 ohm
4 x 250 W @ 8 ohm

Frequency Response (-3dB)

20 Hz - 20000 Hz

Woofer

1 x 8'', 1.5'' v.c

Input section

Total number of inputs

Mic inputs

Mic connectors

Combo XLR/Jack

Line inputs

Line connectors

Combo XLR/Jack, JACK, RCA

Output section

Power output connectors

Euroblock

Processing

DSP

Yes

EQ Filters

8 different equalizations, optimized for music and voice reproduction

Configuration and control

Configuration

Front panel

Number of programs/presets

Protections

Short circuit

Yes

Thermal

Yes

Fuses

Yes

VHF (Very High Frequencies)

Yes

Audio sources

Bluetooth

Yes

Power requirement

Operating voltage

90-240 V~ 50/60Hz

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Plywood

Grille

Steel with clothing

Color

Black

Size / Weight

Height

319 mm / 12.56 inches

Width

370 mm / 14.57 inches

Depth

337 mm / 13.27 inches

Weight

10.2 kg / 22.49 lbs

Shipping information

Package Height

367 mm / 14.45 inches

Package Width

416 mm / 16.38 inches

Package Depth

383 mm / 15.08 inches

Package Weight

12.2 kg / 26.9 lbs
