Features
  • Compatible with all KPS series amplifiers
  • Colour display (240x240 px)
  • Volume control
  • Source selection
  • Standby management
  • PoE power supply
  • Available in white RAL 9003 and black RAL 9005

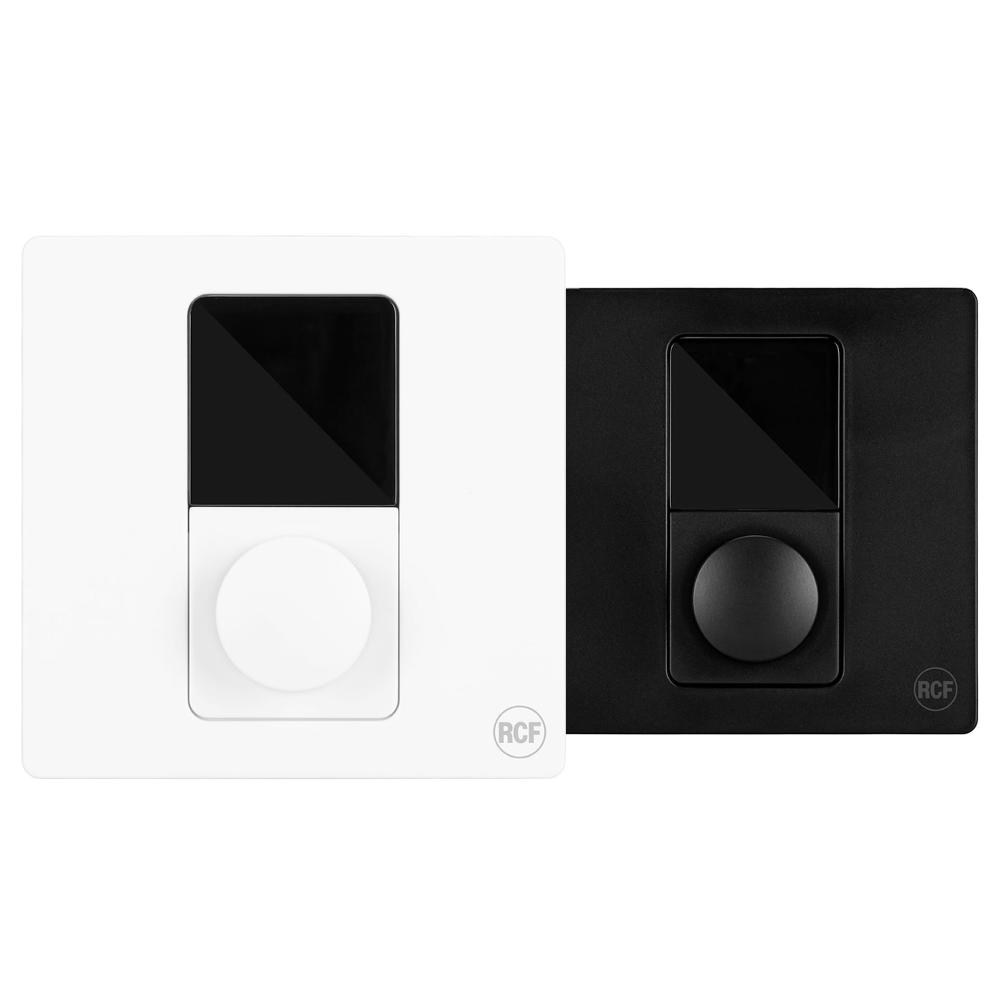

RC KPS is a wall-mounted control unit that allows you to operate KPS series amplifiers by adjusting zone volumes and selecting the corresponding sources. Featuring a discreet and elegant design, it suits all installation environments and is available in both white and black versions. The user interface consists of a practical rotary knob and a 1.1” color display with a resolution of 240x240 pixels. The color scheme can be changed to perfectly match the installation setting. Configuration is very simple and intuitive, and is carried out via the RDSpace software. Up to 8 control units can be connected to the same amplifier, while power is supplied via PoE.

Part number:

12399114
RC KPS EU B
Black - RAL 9005, EAN 8024530023881

12399115
RC KPS EU W
White - RAL 9003, EAN 8024530023898

General specifications
Functions
Volume control
Mute
Source selection
Stand-by
Installation
Compatible with EU installation standard
Work with
KPS sereis amplifiers
Number of connectable item
Up to 8 controllers for each amplifier
Connector
RJ45
Max cable length (CAT 5e)
100 m
Power supply
PoE Class I device, 48V
Power consumption
3.84Wmax
Standard compliance
IP protection grade
IP 30
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Color
Black - RAL 9005, White - RAL 9003
Size / Weight
Height
86.8 mm / 3.42 inches
Width
86.8 mm / 3.42 inches
Depth
42.8 mm / 1.69 inches
Recessed Depth
23.7 mm / 0.93 inches
Weight
0.12 kg / 0.26 lbs
Shipping information
Package Height
70 mm / 2.76 inches
Package Width
150 mm / 5.91 inches
Package Depth
125 mm / 4.92 inches
Package Weight
0.26 kg / 0.57 lbs
