TTR 16KD-3 EU

TOURING RACK

S-COM Signal Connections

P-COM Power Connections

Signal management panel for 6 analog I/O and 4 AES/EBU I/O

AC INPUT for EU (220-240V)

11 RU Durable Flight Case

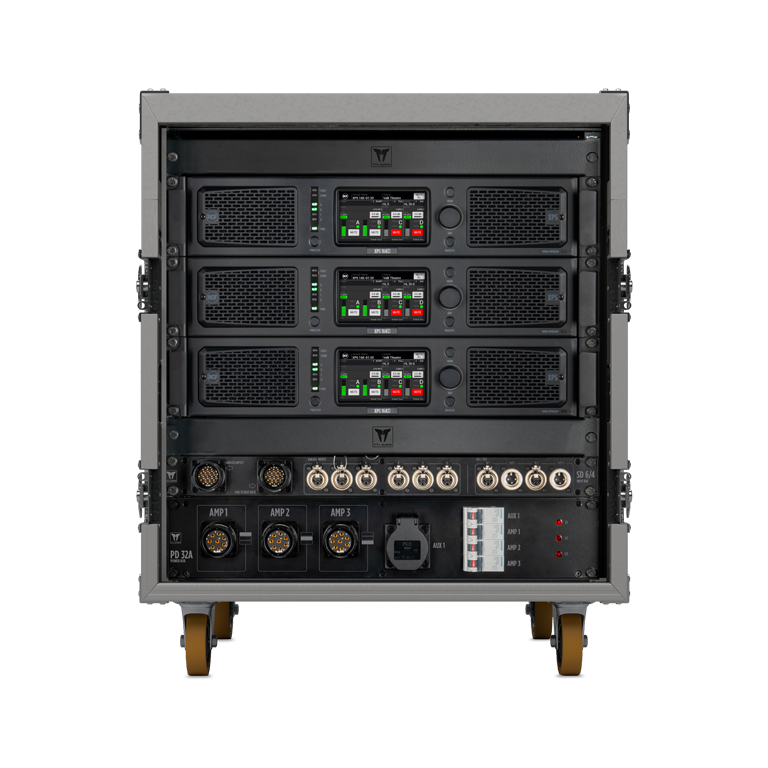

TTR 16KD-3 Rack is a rugged flight case on wheels, designed to house the essential electronics required to power TT+ GTX and GTS line array and subwoofer systems. The 11U Rack features an internal suspended cage, sliding doors, four pivoting wheels, and two handles on each side for enhanced mobility and accessibility. Designed for touring and installed sound applications, this rack ensures secure equipment mounting, efficient cable management, and easy transport in demanding professional audio environments. It includes three XPS 16KD (Dante version) power amplifiers, a PD 32A EU power distributor for the 220-240V powered areas, and an SD 6/4 input box for efficient signal management. All components are pre-wired for immediate “plug and play” operation, ensuring a streamlined setup and reliable performance in demanding audio environments.

ONE-OF-A-KIND AMPLIFICATION RACK

EASY-TO-CONFIGURE, ALL-IN-ONE SOLUTION

The TTR 16KD-3 from TT+ AUDIO is an all-in-one solution that simplifies the setup process for your event. With pre-engineered components specifically designed, the TTR 16KD-3 provides a turnkey amplification package. No assembly required. This frees up your technical team to focus on other important setup tasks.

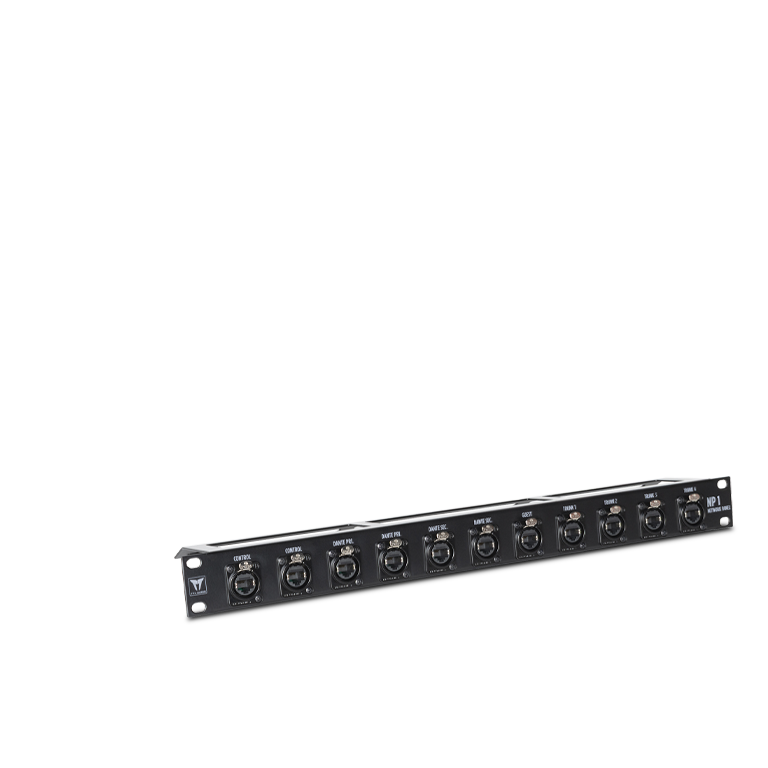

The system features AC power inputs and outputs, rugged S-COM and P-COM multipole connectors for signal and power, network switches for Dante audio transport and control network, and an easy-to-access XLR and AES/EBU patch-bay for rapid routing.
The rack design also optimizes air ventilation between devices.

XPS 16KD

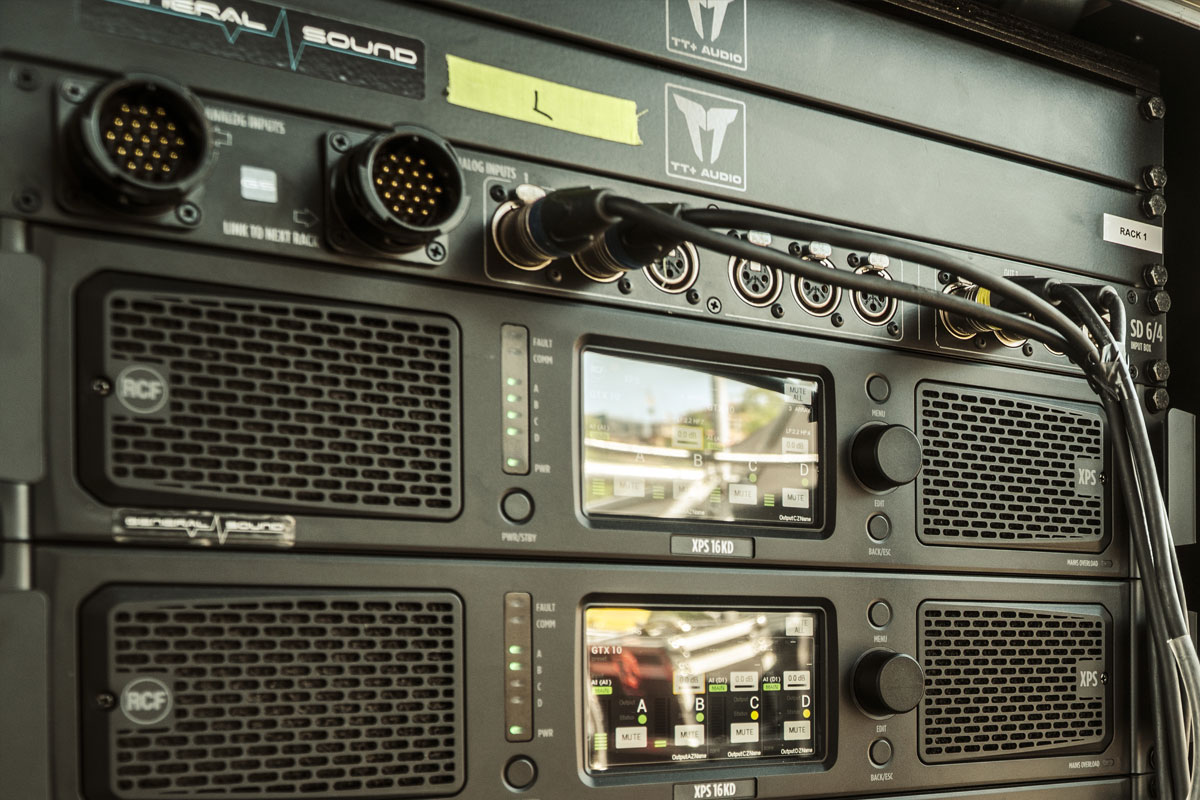

XPS 16KD provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network, RDNet control, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of TT+ Audio speaker presets is available, with powerful signal processing for complete system tuning.

Discover XPS Series

PD 32A

The PD 32A power distribution box is designed for professional audio systems, catering to 230V mains voltage. The unit supports three XPS 16K amplifiers, featuring robust connectivity options, including CEE 5-pin main plugs, Neutrik SpeakCON NL4 to P-COM 8 outputs, Schuko outlets, and efficient circuit protection mechanisms for safe, reliable power distribution.

Discover PD 32A

SD 6/4

SD 6/4 is an input signal box that distributes the signals from S-COM 19 connector or the six female XLR connectors on the front panel to ten male XLRs on the back panel. Inputs 1 and 2 are respectively paralleled to three XLR connectors on the back panel. The four AES/EBU IN/OUT connectors are linked to the back panel.

Discover SD 6/4

Part number

17100030
TTR 16KD-3 EU
EAN 8024530023867

Sspecifications generales

Type

11U

Conformité standard

Safety agency

CE compliant

Specifications physiques

Matériau du cabinet/caisson

Metal

Taille / Poids

Hauteur

750 mm / 29.53 inches

Largeur

600 mm / 23.62 inches

Profondeur

700 mm / 27.56 inches

Poids

114.6 kg / 252.65 lbs

Infos colisage

Hauteur du colis

950 mm / 37.4 inches

Largeur du colis

800 mm / 31.5 inches

Profondeur du colis

800 mm / 31.5 inches

Poids du colis

138.6 kg / 305.56 lbs
