X 40 TWO-WAY PROFESSIONAL SPEAKER
NEW
INSTALLED
X 40
TWO-WAY PROFESSIONAL SPEAKER
- 142 dB max SPL
- 2 x 10" neo woofer, 3.0'' v.c.
- 1 x 1.4" neo compression driver, 4.0'' v.c.
- 110° x 60° coverage angle with asymmetric horn
WEATHERPROOF
IP55
Características
- 142 dB max SPL
- 50 ÷ 20000 Hz frequency range
- 110° x 60° coverage angle with asymmetric horn
- 2 x 10" neo woofer, 3.0'' v.c.
- 1 x 1.4" neo compression driver, 4.0'' v.c.
- High quality structural polyurethane cabinet
- Aluminum grille with water-repellent protection
- IP55 protection grade

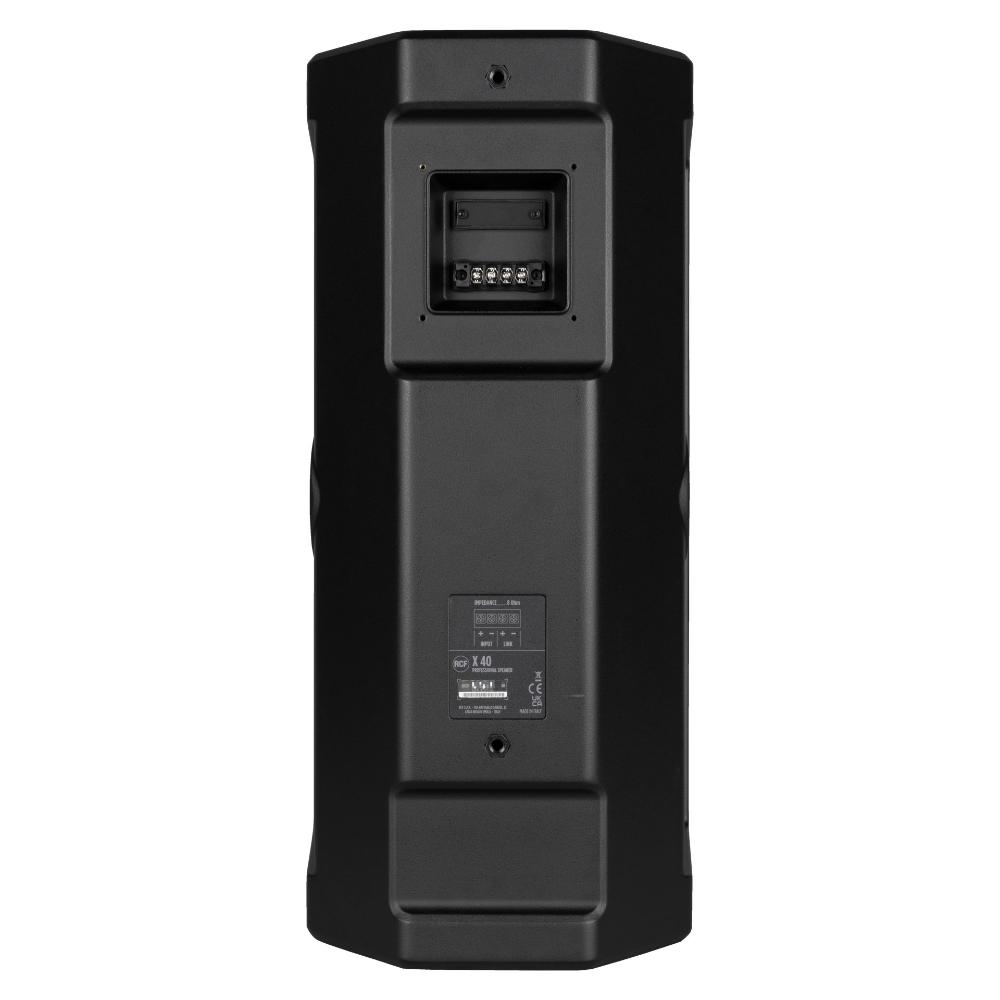

- 4 pole barrier strip terminals

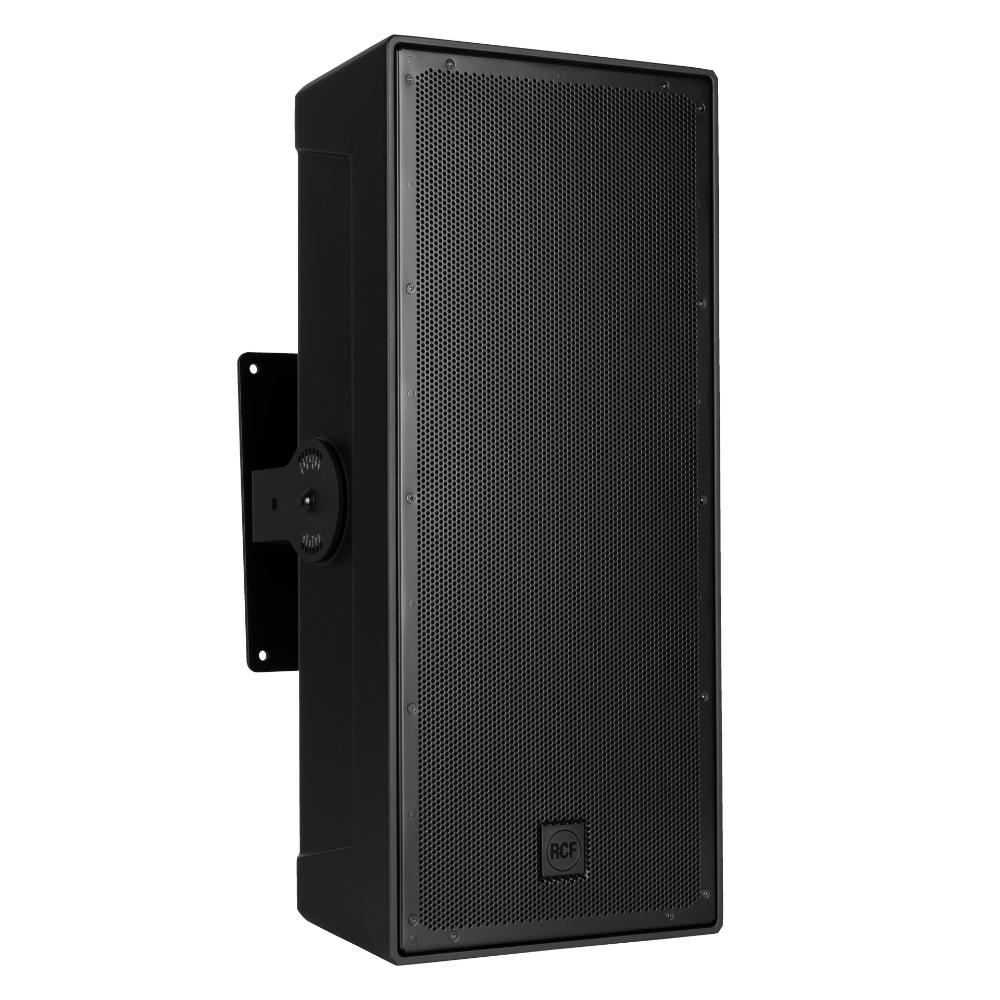

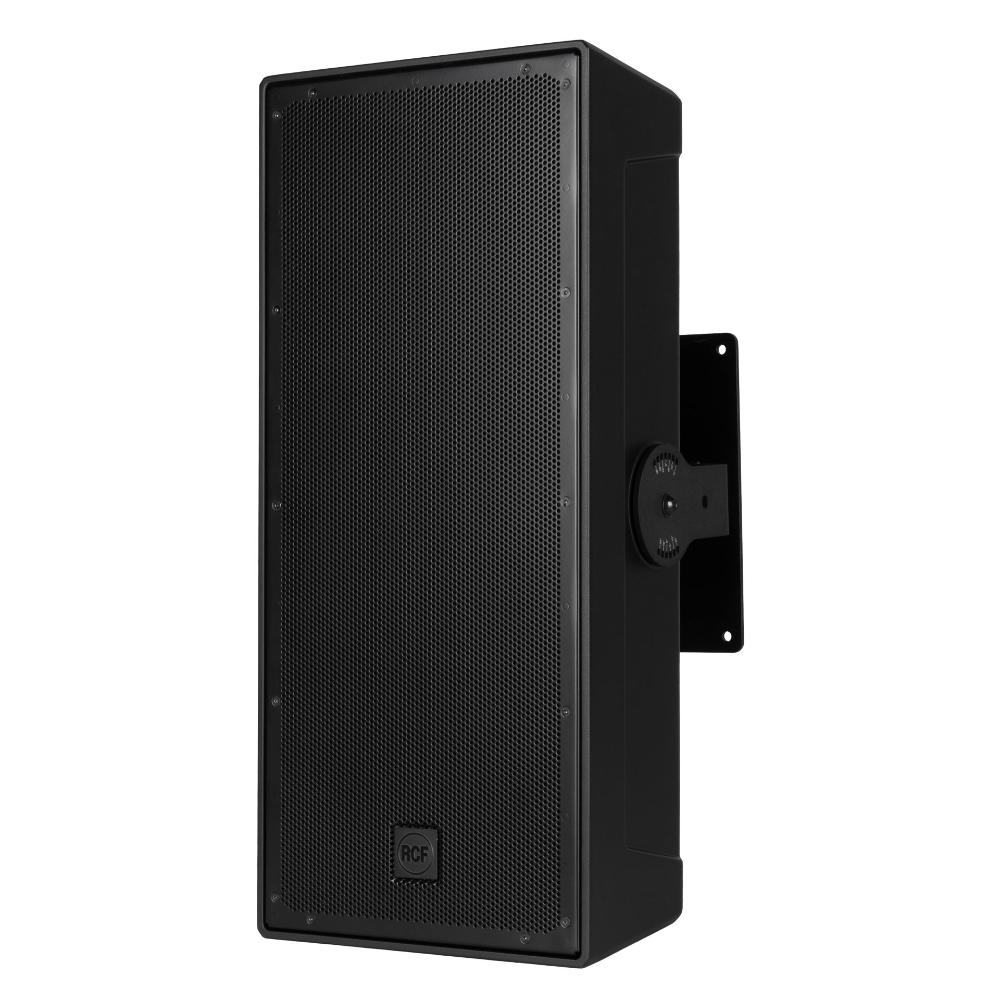

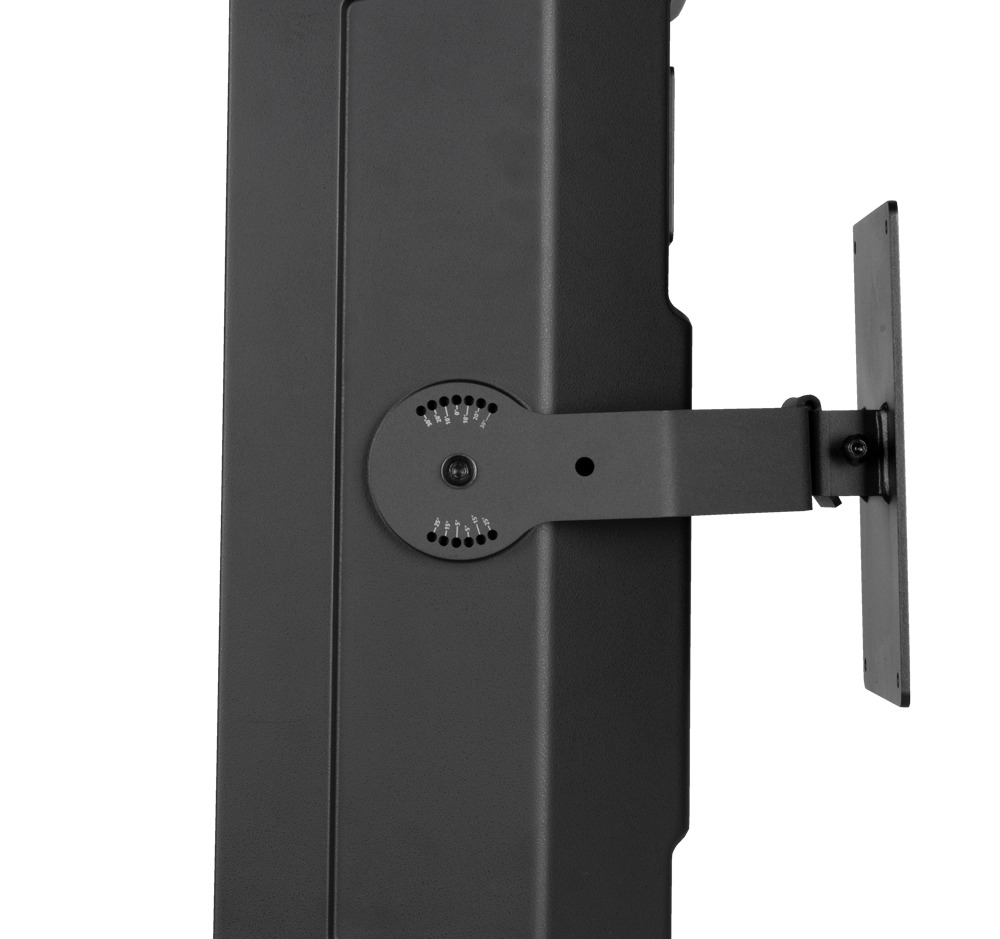

X 40 is a two-way professional speaker designed for a wide range of fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the state of the art RCF transducers, two 10’’ high power woofers with 3.0’’ voice coils and one 1.4’’, titanium dome, compression driver with 4.0’’ voice coil, it offers exceptional max SPL level with a balanced and clear sound. The asymmetrical horn with 110° by 60° directivity allows an efficient coverage at different distances, as for example in the case of a racing circuit grandstand. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for wall mount vertical installation is included.
All-weather Performance
Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.
Heading Example
TRW Asymmetric Constant Coverage Waveguide
X 40’s True Resistive Waveguide (TRW) is engineered as part of a fully integrated system: transducers, enclosure, and vented ports are developed together to control the acoustic load and radiation with higher precision. Acoustically, the waveguide behaves as a pure resistive load, minimizing horn resonances and the high-frequency distortion they typically associated with conventional horns.
When paired with FiRPHASE processing, TRW helps the system behave as a single, coherent source, producing a precise, stable sound image. The 100° × 20° asymmetric pattern is shaped for audience geometries: vertical dispersion is tighter above the horn axis and wider below, keeping energy on the seating plane, extending reach to the back rows, and reducing ceiling reflections to support speech intelligibility.
When paired with FiRPHASE processing, TRW helps the system behave as a single, coherent source, producing a precise, stable sound image. The 100° × 20° asymmetric pattern is shaped for audience geometries: vertical dispersion is tighter above the horn axis and wider below, keeping energy on the seating plane, extending reach to the back rows, and reducing ceiling reflections to support speech intelligibility.
LICC - Low Impedance Compensated Crossover
X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.
Amplificador recomendado
SERIE XPS
Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Especificaciones acusticas
Respuesta en frecuencia (-10 dB)
50 Hz - 20000 Hz
SPL máx. a 1 m
142 dB
Ángulo de cobertura horizontal
110°
Ángulo de cobertura vertical
60°
Sección de potencia
Amplification
Full Range
Impedancia nominal
8 ohm
Manejo de potencia
1200 W RMS
Manejo de potencia pico
4800 W PEAK
Protecciones
Dynamic active mosfet
Frecuencias de cruce
750 Hz
Amplificador recomendado
XPS 16K, XPS 16KD
Transductores
Motor de compresión
1 x 1.4'' neo, 4.0'' v.c
Altavoz de bajos
2 x 10'' neo, 3.0'' v.c
Sección de entrada/salida
Conectores de entrada
Screw Terminals
Conectores de salida
Screw Terminals
Cumplimiento estándar
Grado de protección IP
IP 55
Safety agency
CE compliant
Especificaciones físicas
Material del gabinete/de la caja
Structural Polyurethane
Hardware
2 x M10 (top) - 2 x M10 (back)
Rejilla
Aluminum with water-repellent protection
Color
Black - RAL 9005
Tamaño / Peso
Altura
710 mm / 27.95 inches
Ancho
311 mm / 12.24 inches
Profundidad
270 mm / 10.63 inches
Peso
25 kg / 55.12 lbs
Informaciones de envío
Altura de paquete
310 mm / 12.2 inches
Anchura de paquete
841 mm / 33.11 inches
Profundidad de paquete
338 mm / 13.31 inches
Peso de paquete
28.2 kg / 62.17 lbs
MANUALES
SUSPENSIÓN/MONTAJE
