X 28L TWO-WAY LINE ARRAY MODULE
NEW
INSTALLED
X 28L
TWO-WAY LINE ARRAY MODULE
- 140 dB max SPL
- 1 x 3.0" v.c. neo compression driver
- 2 x 8" neo woofer, 2.5'' v.c.
- 110° x 20° constant directivity coverage angle
WEATHERPROOF
IP55
Características
- 800 W RMS power handling
- 140 dB max SPL
- 50 ÷ 20000 Hz frequency range
- 110° x 20° constant directivity coverage angle
- 2 x 8" neo woofer, 2.5'' v.c.
- 1 x 3.0" v.c. neo compression driver
- High quality structural polyurethane cabinet
- Aluminum grille with water-repellent protection
- IP55 protection grade

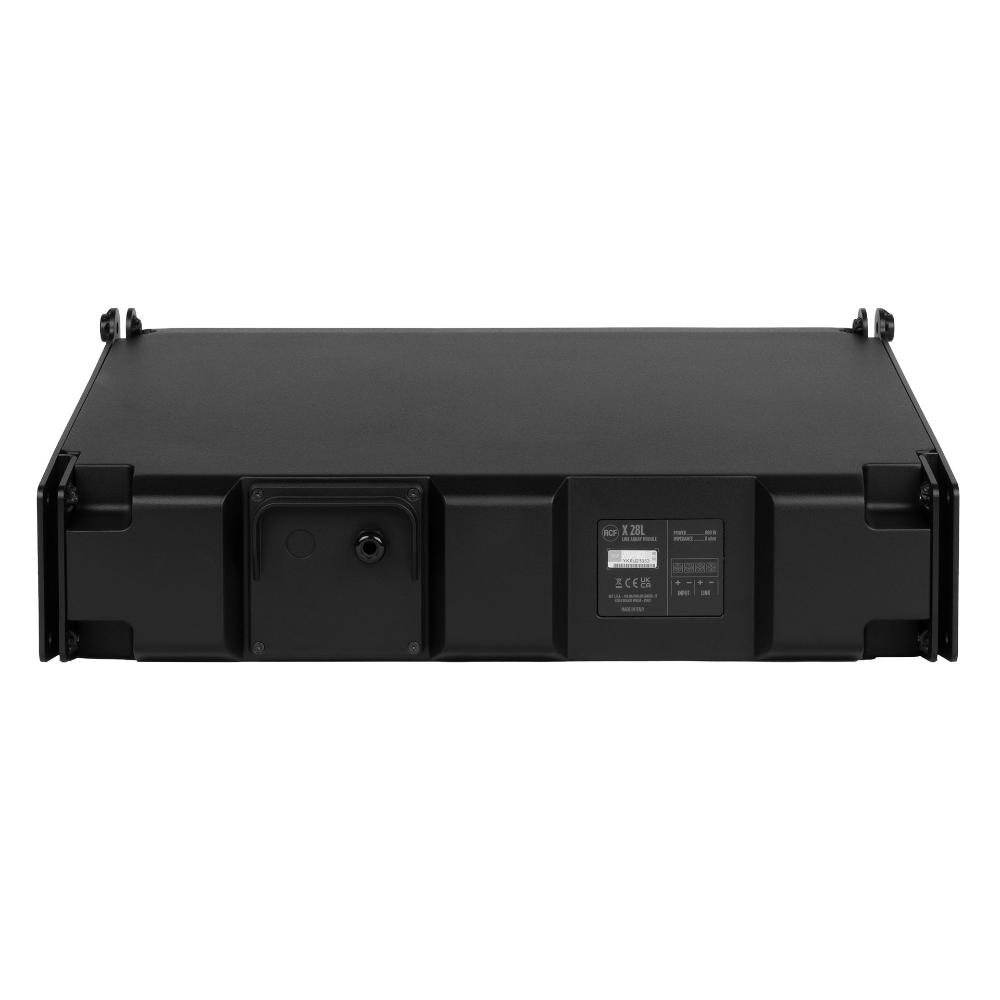

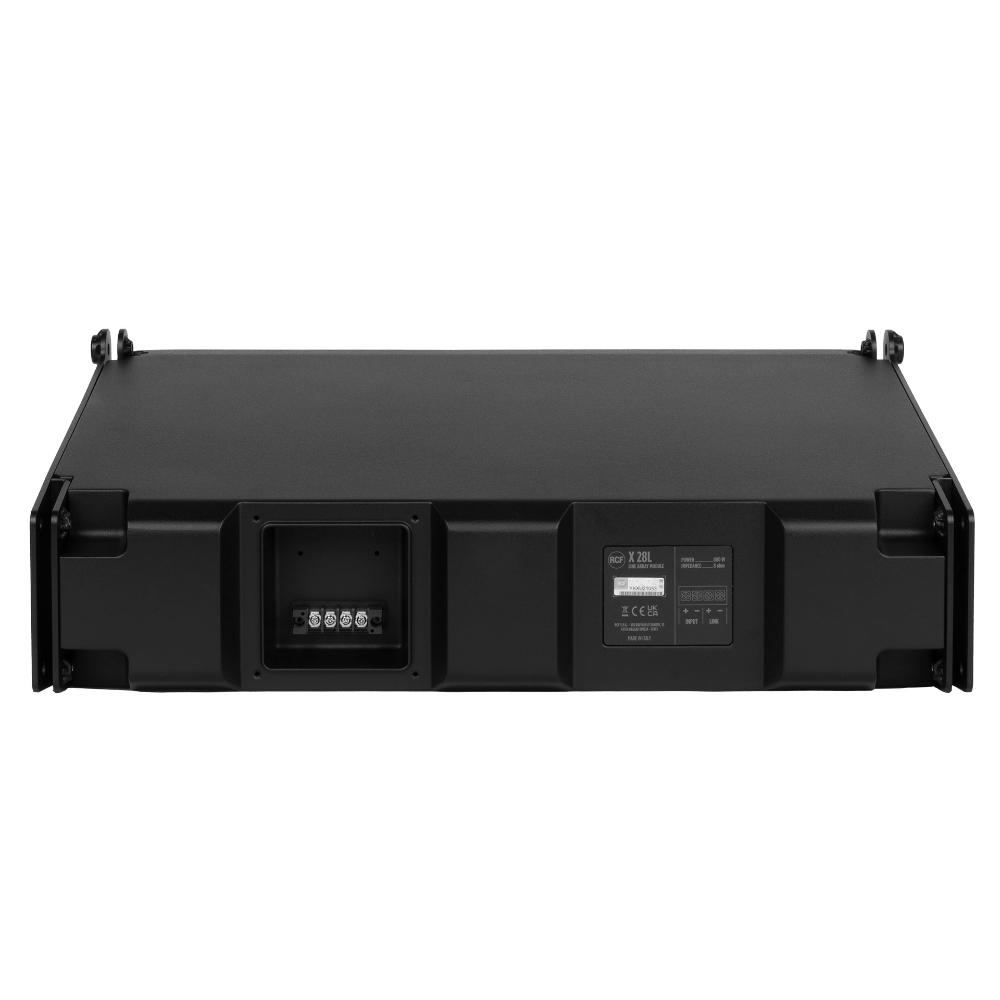

- 4 pole barrier strip terminals

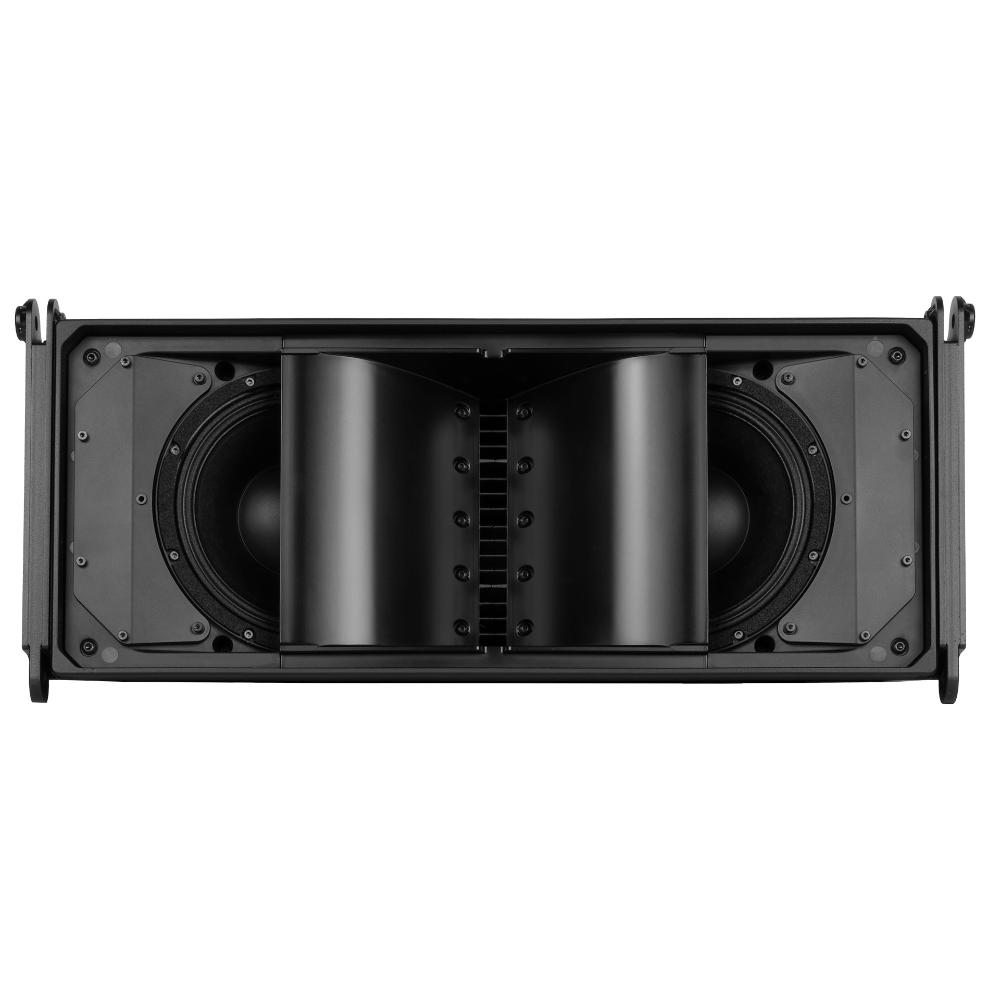

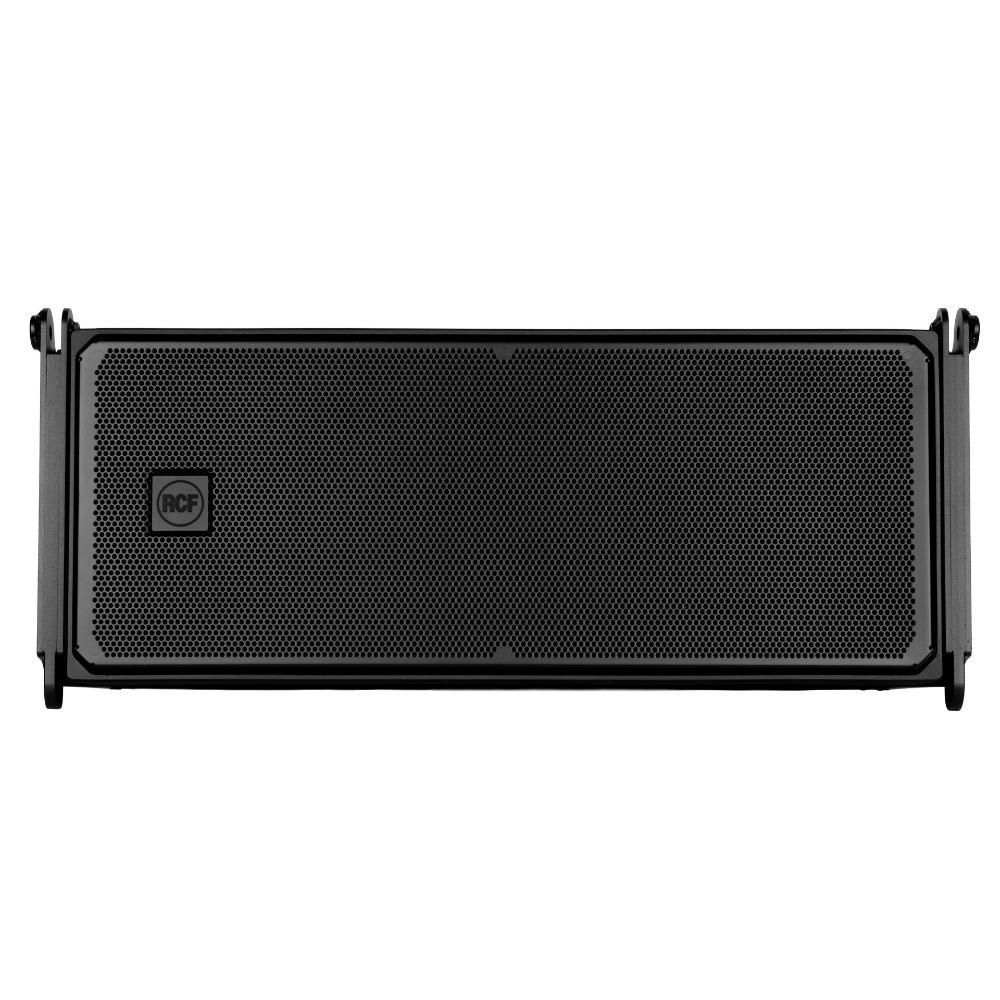

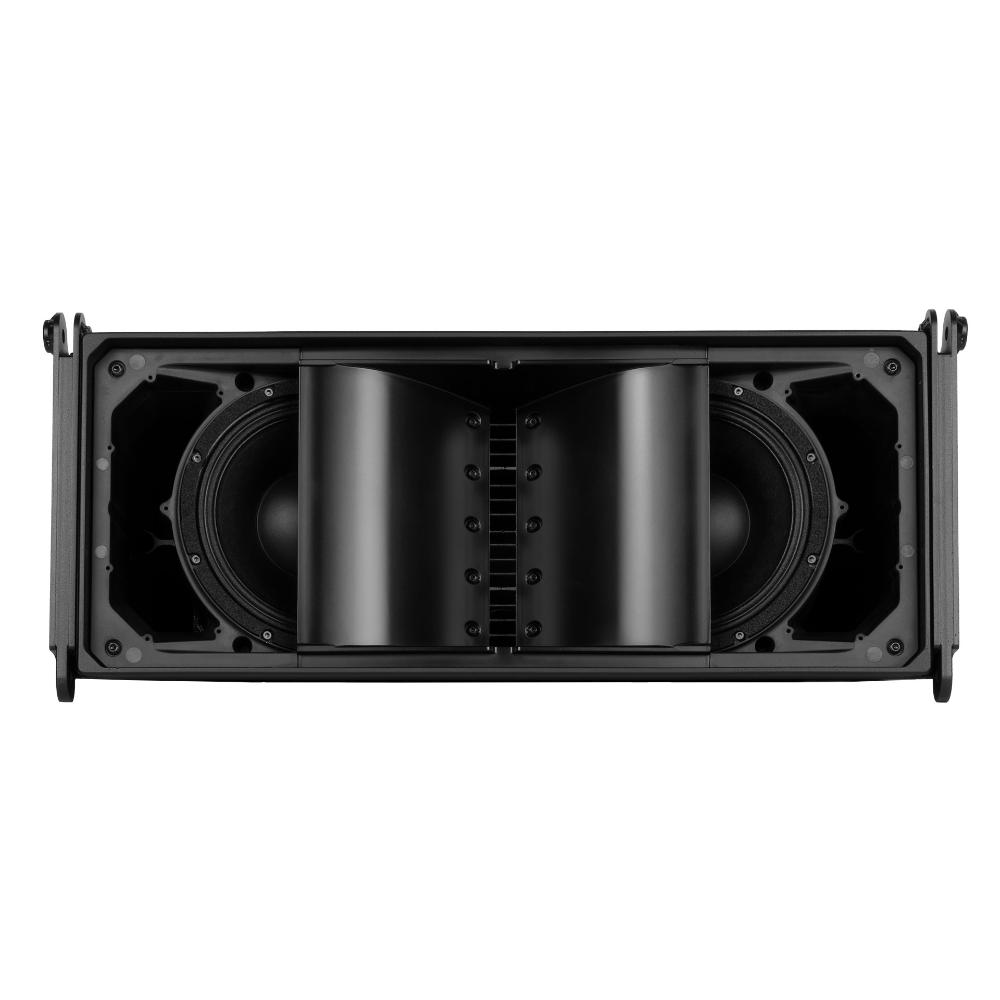

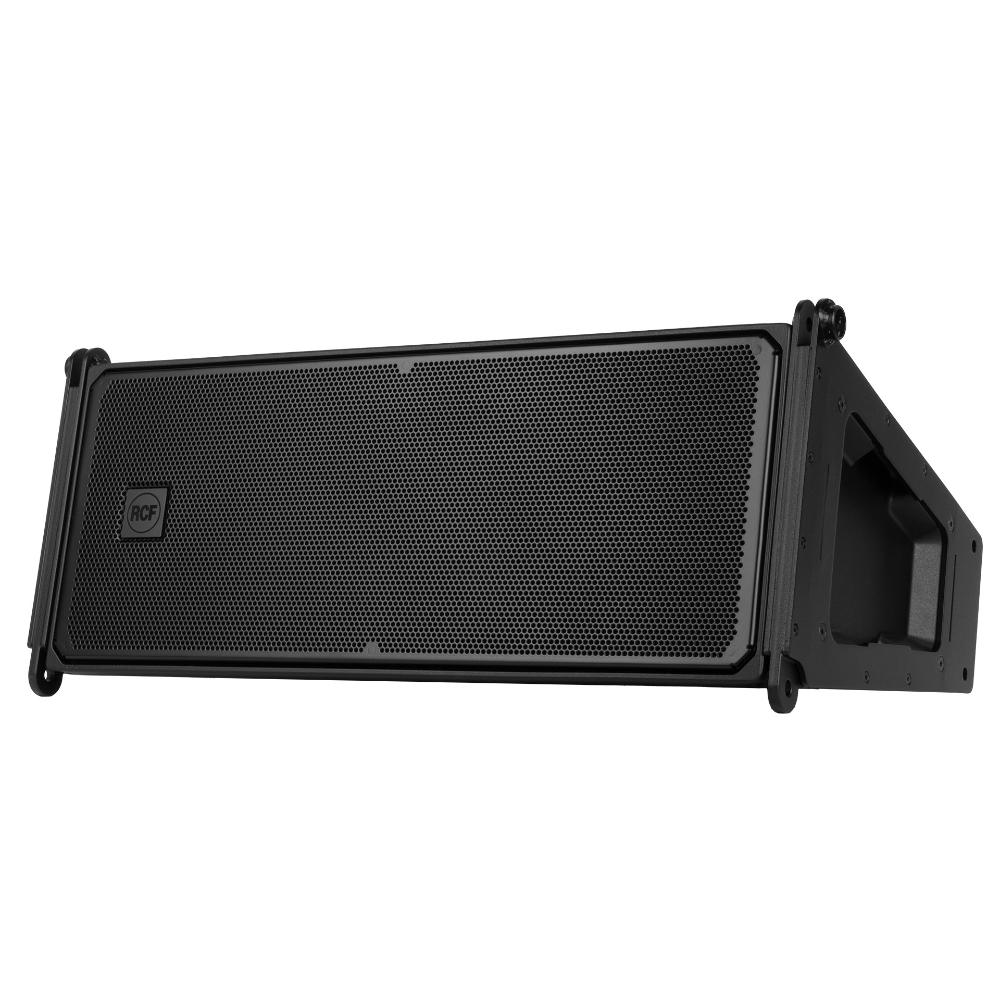

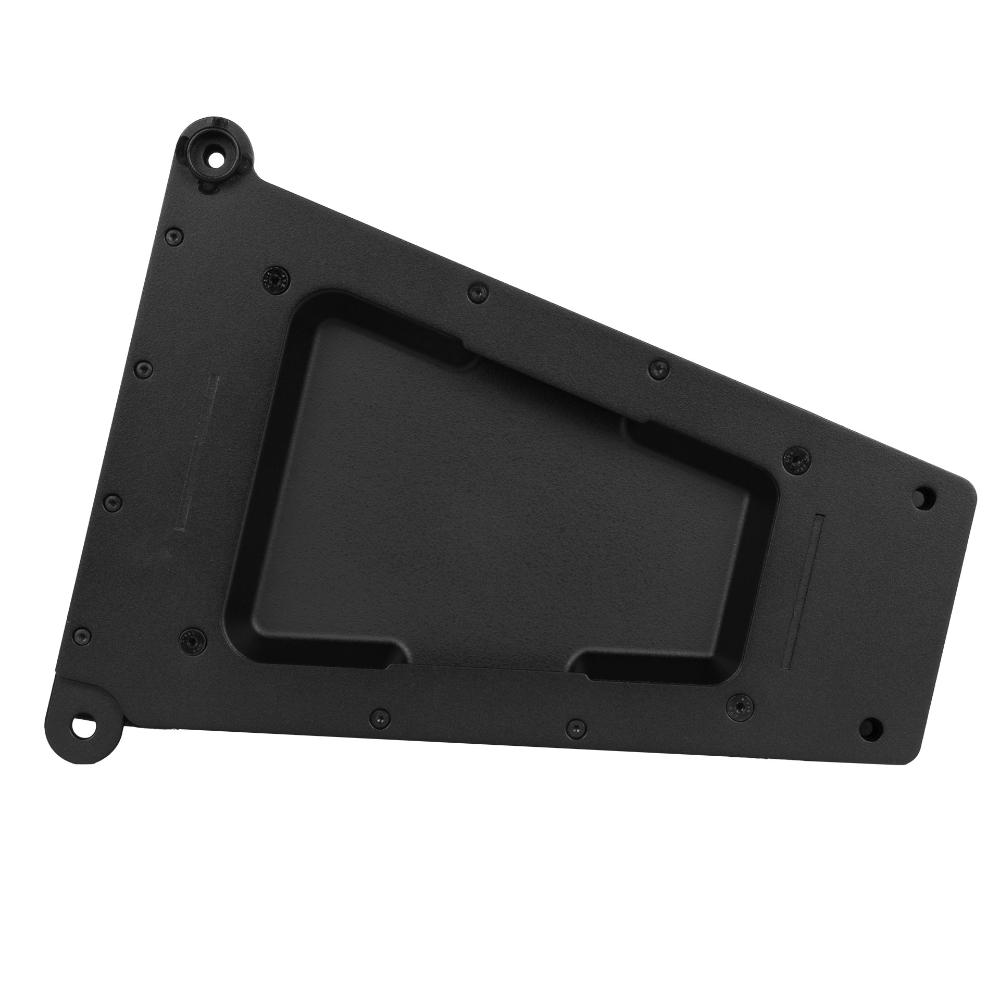

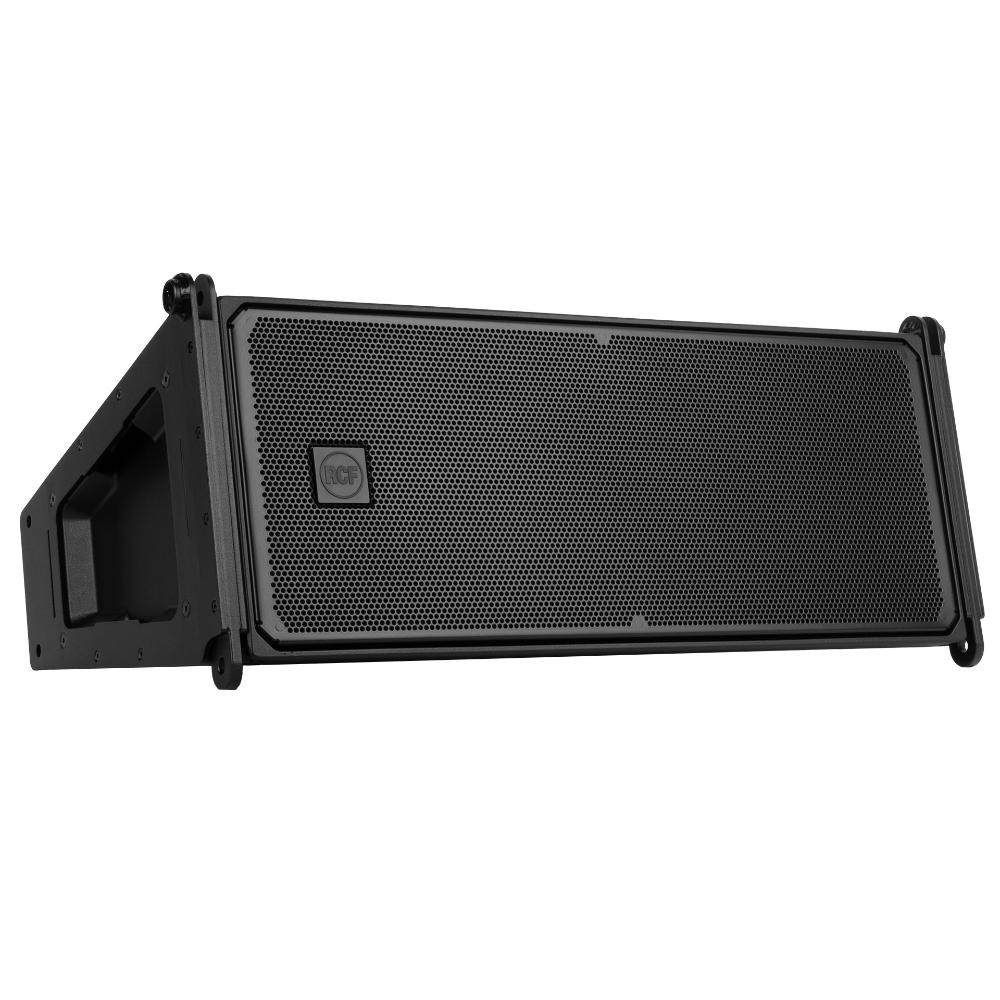

X 28L is a line array module designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 8'' woofers and the 3'' voice coil compression driver it offers a powerful and clear sound with constant 110° x 20° directivity. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20° with 2° steps.
All-weather Performance
Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.
Heading Example
TRW Waveguide
The new True Resistive Waveguide (TRW) is the result of extensive refinements in the design of the transducers, enclosure, and vented ports—developed together as part of a fully integrated system. Combined with FiRPHASE processing, the TRW enables the speaker to act as a single coherent source, delivering a precise and stable sound image. Acoustically, the waveguide behaves as a pure resistive load—free from resonances—significantly reducing high-frequency distortion typically associated with conventional horns.
LICC - Low Impedance Compensated Crossover
X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.
Amplificador recomendado
SERIE XPS
Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Especificaciones acusticas
Respuesta en frecuencia (-10 dB)
50 Hz - 20000 Hz
SPL máx. a 1 m
140 dB
Ángulo de cobertura horizontal
110°
Ángulo de cobertura vertical
20°
Sección de potencia
Amplification
Full Range
Impedancia nominal
8 ohm
Manejo de potencia
800 W RMS
Manejo de potencia pico
3200 W PEAK
Protecciones
Dynamic active mosfet
Frecuencias de cruce
750 Hz
Amplificador recomendado
XPS 16K, XPS 16KD
Transductores
Motor de compresión
1 x 1.4'' neo, 3.0'' v.c
Altavoz de bajos
2 x 8'' neo, 2.5'' v.c
Sección de entrada/salida
Conectores de entrada
Screw Terminals
Conectores de salida
Screw Terminals
Cumplimiento estándar
Grado de protección IP
IP 55
Safety agency
CE compliant
Especificaciones físicas
Material del gabinete/de la caja
Structural Polyurethane
Hardware
Array fittings
Rejilla
Aluminum with water-repellent protection
Color
Black - RAL 9005
Tamaño / Peso
Altura
290 mm / 11.42 inches
Ancho
658 mm / 25.91 inches
Profundidad
378 mm / 14.88 inches
Peso
24 kg / 52.91 lbs
Informaciones de envío
Altura de paquete
390 mm / 15.35 inches
Anchura de paquete
685 mm / 26.97 inches
Profundidad de paquete
305 mm / 12.01 inches
Peso de paquete
28.2 kg / 62.17 lbs
