Características
  • 80 W RMS power handling
  • 109 dB max SPL
  • 45 ÷ 250 Hz frequency range
  • 180° omnidirectional coverage angle
  • 6.5" high power woofer, 1.5'' v.c.
  • Self extinguishing plastic body and metal backcan

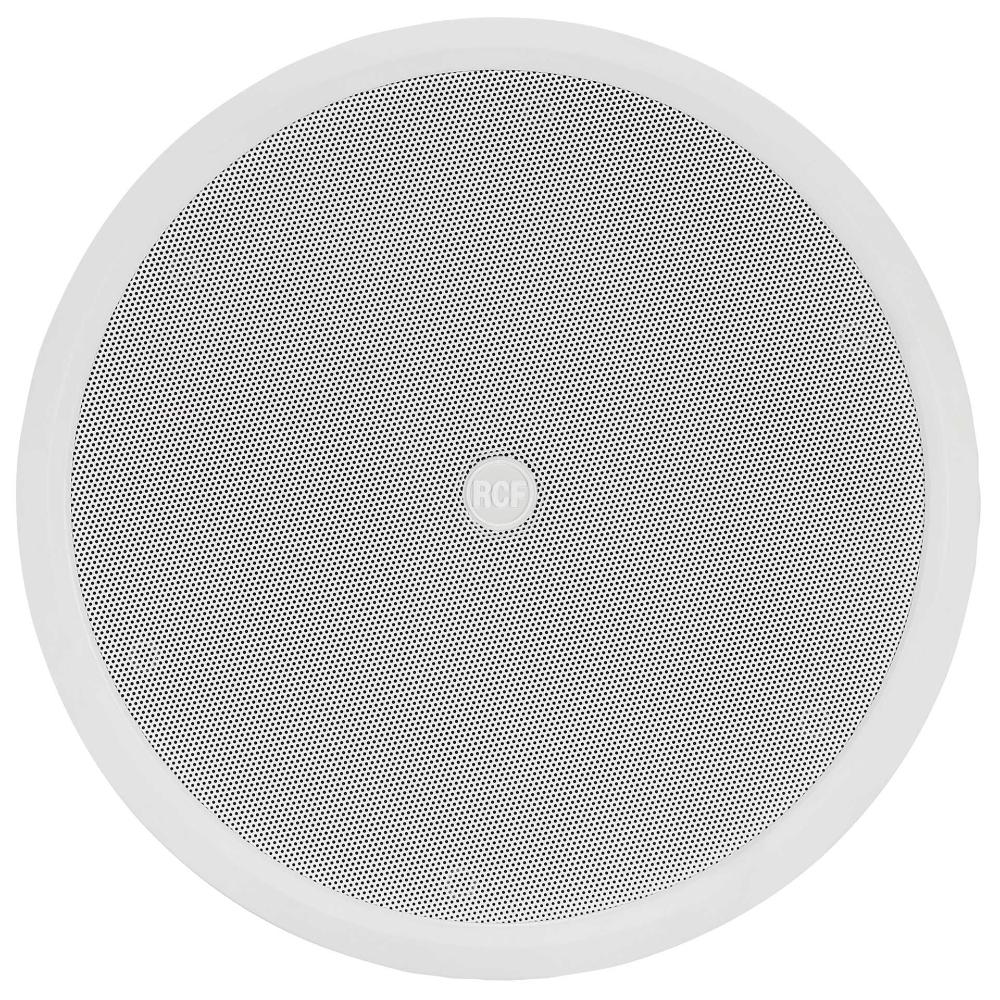

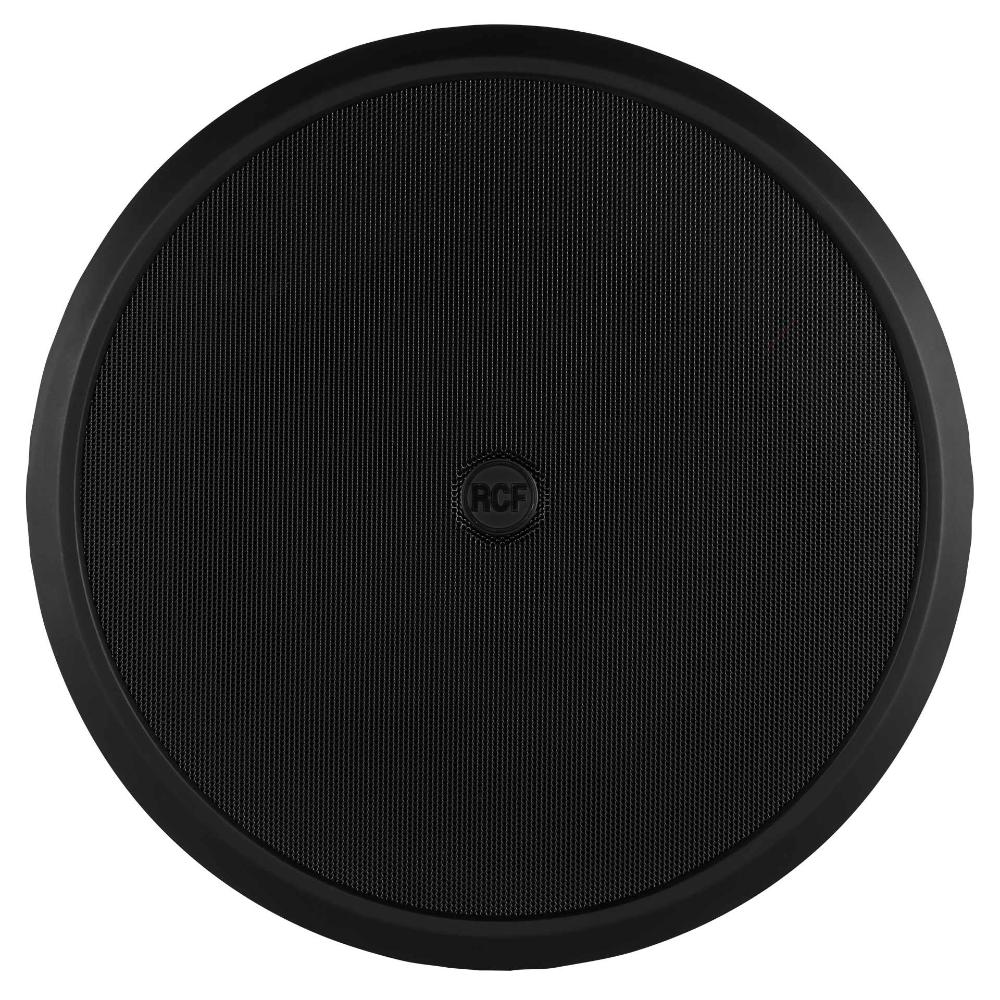

  • Steel magnetic front grille

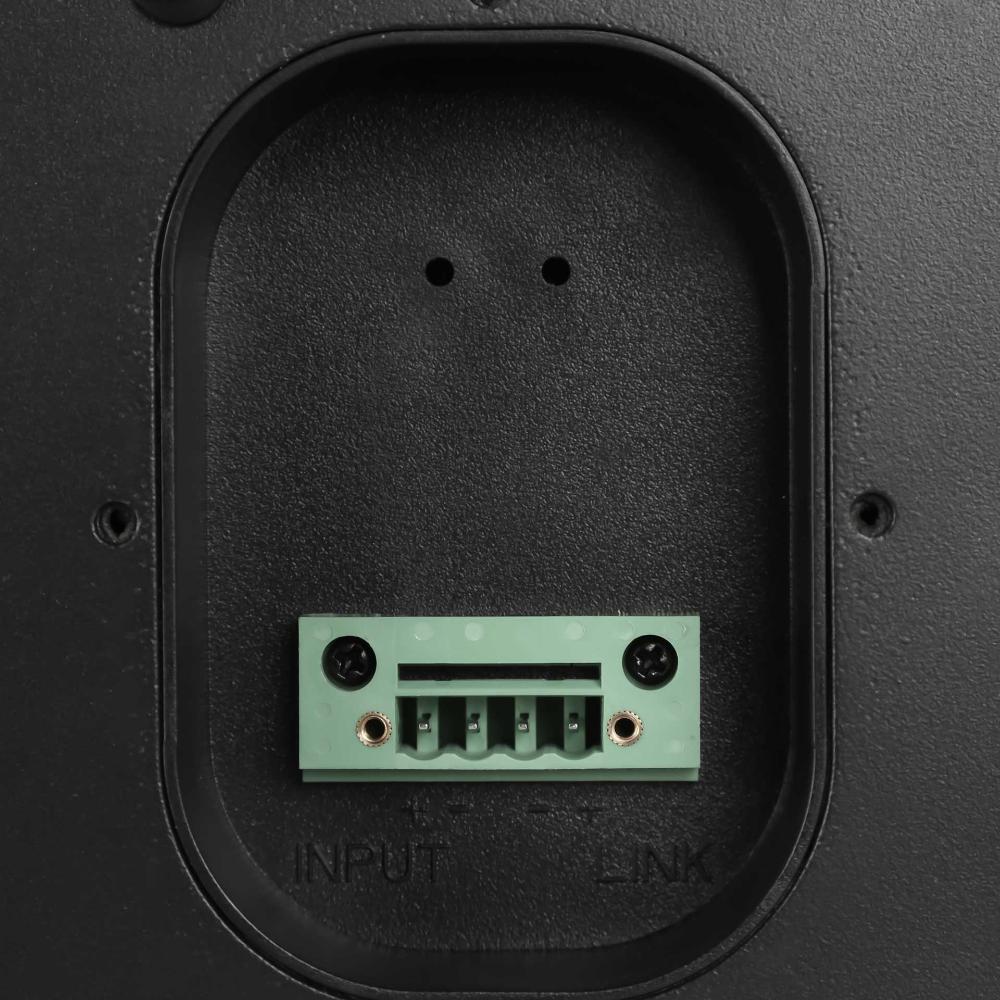

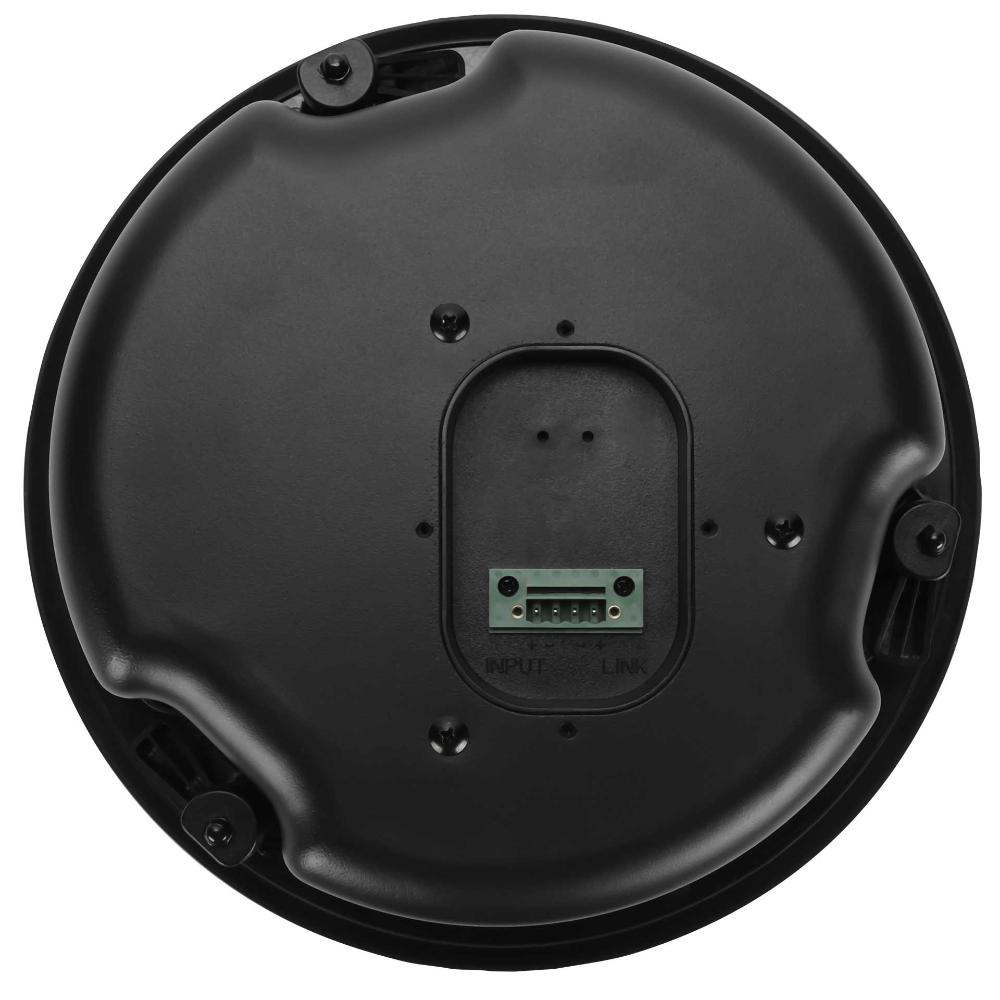

  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

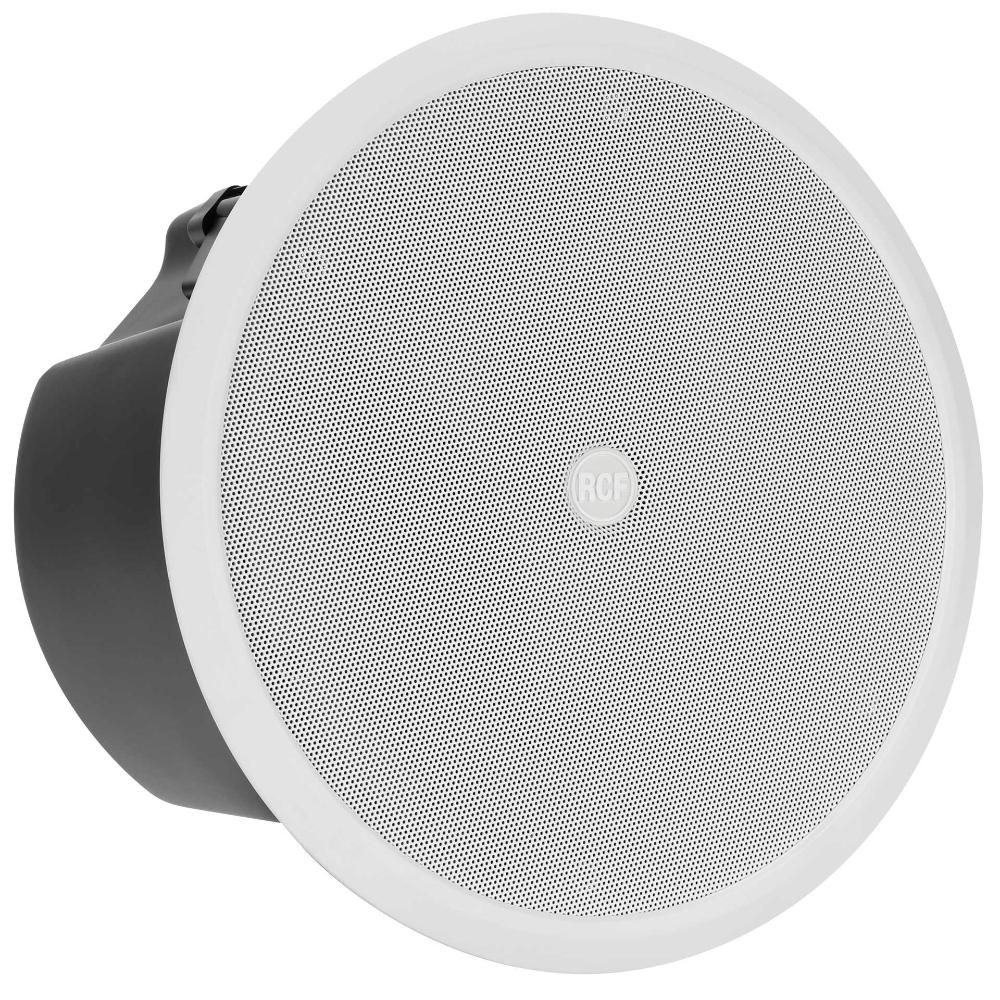

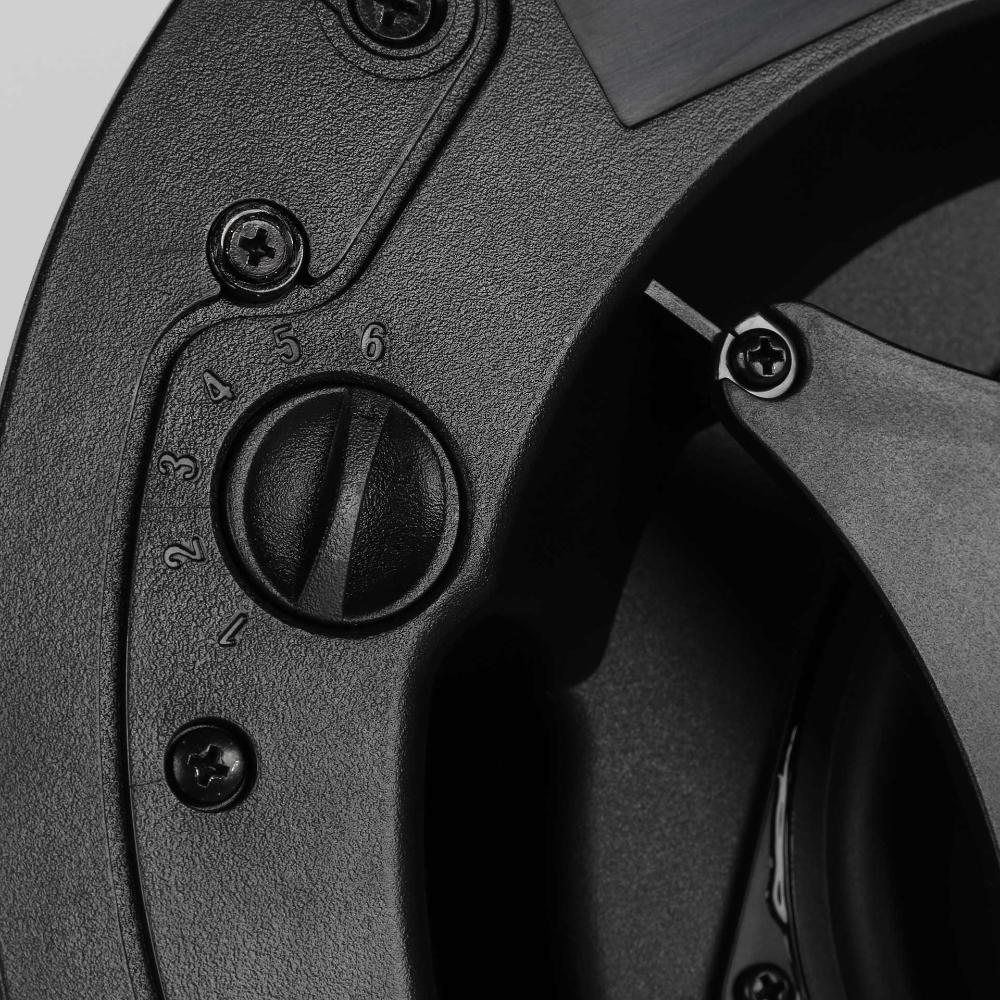

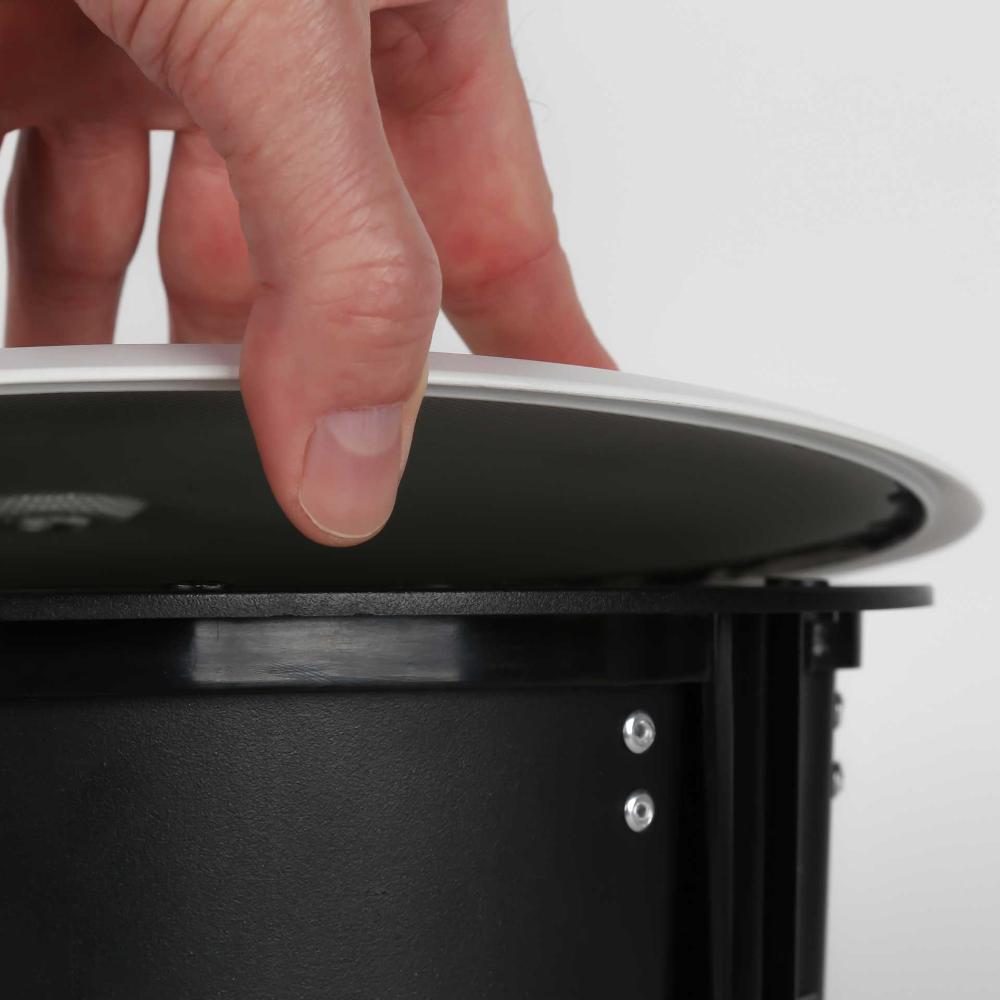

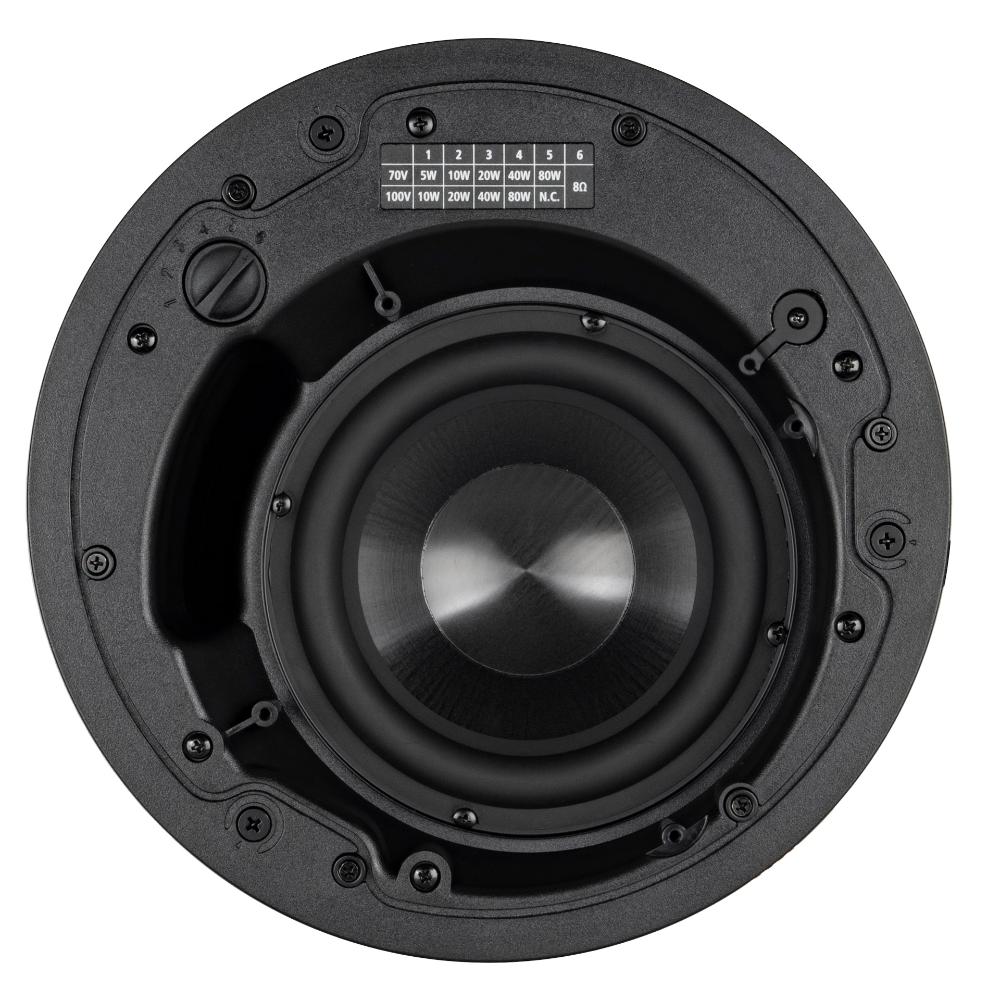

CMR-S 60T is a ceiling subwoofer, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducer guarantees faithful and precise low frequencies reproduction and allows to reach truly remarkable sound pressure levels for such compact product. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch (the line transformer allows selection among five power rates).


NEW

Part number:

13100112

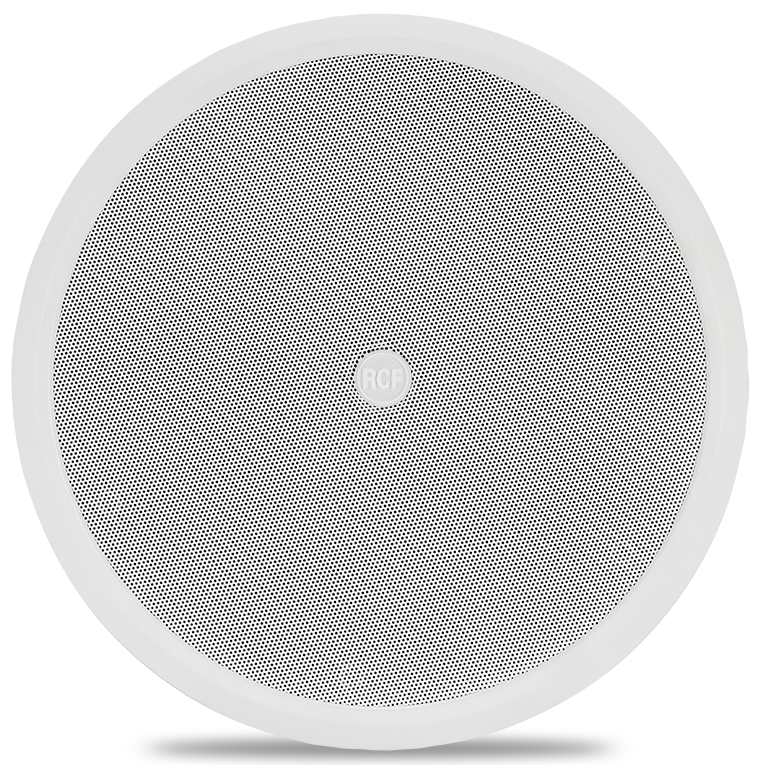

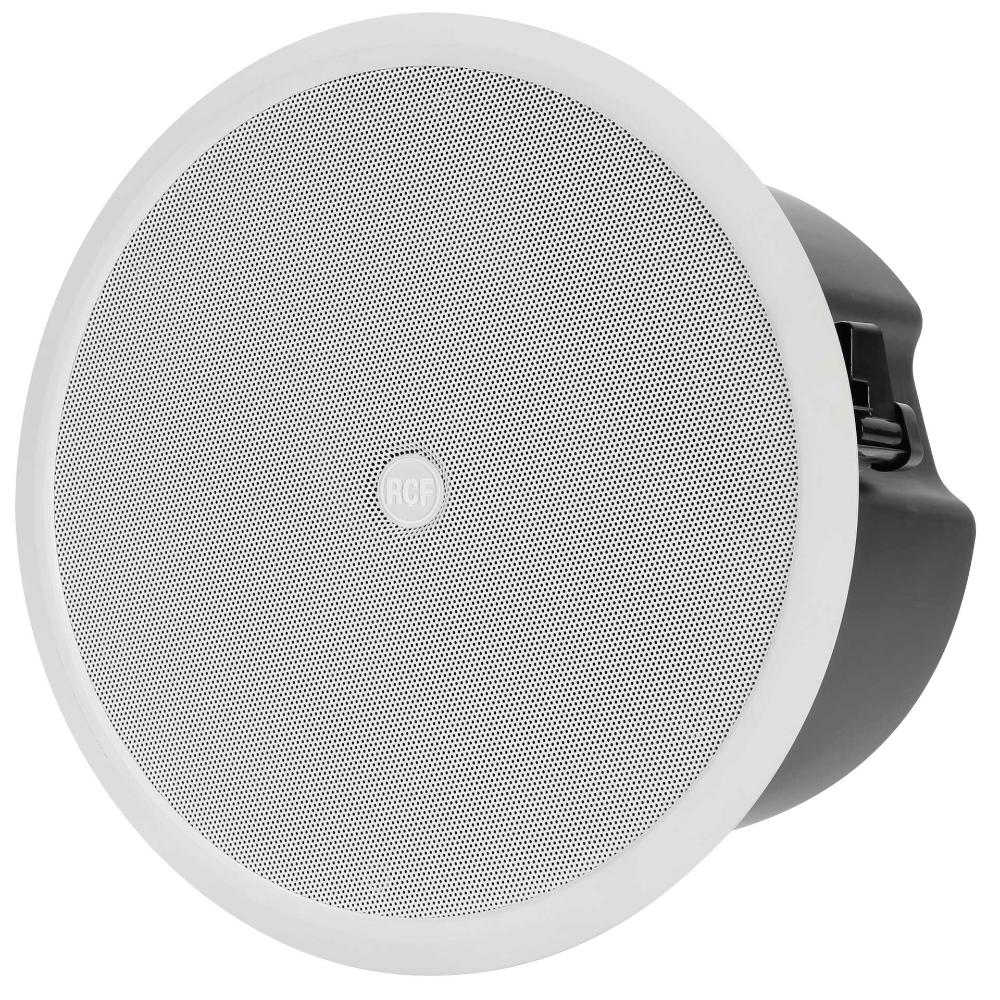

CMR-S 60T W
White - RAL 9003, EAN 8024530022259

Especificaciones acusticas
Respuesta en frecuencia (-10 dB)
45 Hz ÷ 250 Hz
SPL máx. a 1 m
109 dB
Ángulo de cobertura
180°
Sensibilidad del sistema
89 dB
Sección de potencia
Amplification
Full Range
Impedancia nominal
8 ohm
Manejo de potencia
80 W RMS
Manejo de potencia pico
320 W PEAK
Amplificador recomendado
DMA 504, DMA 162, DMA 82, DMA 162P
Transductores
Altavoz de bajos
1 x 6.5'', 1.5'' v.c
Sección de entrada/salida
Conectores de entrada
Euroblock
Conectores de salida
Euroblock
Transformador de voltaje constante
70/100 V
Selección de potencia 1
80 W - 125 ohm
Selección de potencia 2
40 W - 250 ohm
Selección de potencia 3
20 W - 500 ohm
Selección de potencia 4
10 W - 1000 ohm
Selección de potencia 5
5 W - 2000 ohm
Cumplimiento estándar
Safety agency
CE compliant
Especificaciones físicas
Material del gabinete/de la caja
ABS
Hardware
Steel backcan
Rejilla
Steel
Color
White - RAL 9003
Tamaño / Peso
Profundidad
202 mm / 7.95 inches
Profundidad de empotrado
193 mm / 7.6 inches
Diámetro
300 mm / 11.81 inches
Diámetro del orificio
260 mm / 10.24 inches
Peso
4.5 kg / 9.92 lbs
Informaciones de envío
Altura de paquete
280 mm / 11.02 inches
Anchura de paquete
362 mm / 14.25 inches
Profundidad de paquete
362 mm / 14.25 inches
Peso de paquete
6 kg / 13.23 lbs
