GTS 19G HIGH-PERFORMANCE SUBWOOFER - TT Audio
GTS 19G
HIGH-PERFORMANCE SUBWOOFER

140 dB max SPL
19” neo woofer, 4” v.c.
2 side handles
Designed to operate with XPS 16K amplifier (8 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
3 P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)

GTS 19G
HIGH-PERFORMANCE SUBWOOFER
140 dB max SPL
19” neo woofer, 4” v.c.
2 side handles
Designed to operate with XPS 16K amplifier (8 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
3 P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
The GTS 19G is a single19” subwoofer module for the low-frequency extension in high-demanding touring and install applications, indoors and outdoors. Equipped with one high-excursion best-in-class transducer, it offers excellent reproduction quality and extreme sound pressure. The cabinet is provided with P-COM power connections on back panels

THE SINGLE 19" SUB
EVOLUTION OF LF PARADIGMS
The GTS 19G is a versatile and powerful subwoofer with the latest transducer technology from our labs and a lightweight, fast-to-deploy enclosure. Despite its small and lightweight footprint, the GTS 19G produces powerful yet articulate bass that remains true to even the most subtle low-frequency variations.
HYPERVENTED HIGH POWER 19” SUBWOOFER
The new unconventional motorstructure was requested by touring professionals for accurate low-frequency reproduction using a high excursion piston. The 19-inch cone size is the ideal balance between traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (67mm/2.6-inch safe peak-to-peak) gains high power with fast acceleration. The improved TT+ Audio’s Hypervented technology reduces power compression, heat and distortion.


ENCLOSURE AND HARDWARE
The sturdy weather-resistant birch plywood enclosure with durable polyurea coating features two handles with rubber handgrips on each side and an M20 threaded pole mounts on top and side. A detachable cart can be secured to the front, with custom-designed protective covers for safe handling.

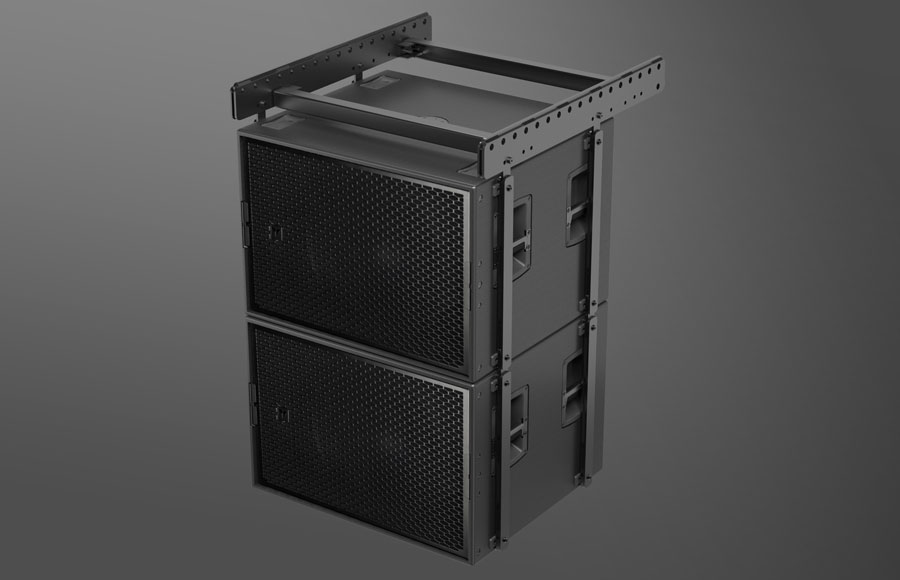

MODULAR SUSPENSION KIT
The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations.
For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.
For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.

Part number
13000862
GTS 19G
EAN 8024530022082
Acoustical specifications
Frequency Response (-10dB)
28 Hz ÷ 200 Hz
Max SPL @ 1m
140 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Transducers
Woofer
1 x 19'' neo, 4.0'' v.c
Input/Output section
Input connectors
P-COM 8POLE
Output connectors
P-COM 8POLE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Birch plywood
Hardware
M20 Socket
Handles
2 x side
Pole mount/Cap
M20 thread
Grille
Steel with clothing
Color
Black
Size / Weight
Height
531.5 mm / 20.93 inches
Width
760 mm / 29.92 inches
Depth
655 mm / 25.79 inches
Weight
48.5 kg / 106.92 lbs
Shipping information
Package Height
605 mm / 23.82 inches
Package Width
815 mm / 32.09 inches
Package Depth
725 mm / 28.54 inches
Package Weight
54 kg / 119.05 lbs
MANUALS
SPECIFICATIONS
DRAWINGS
CABLES
PROTECTIONS
RIGGING / MOUNTING
TRANSPORTATION
TT+ AUDIO products are continually improved. All specifications are therefore subject to change without notice.
