RCF Delivers Unified Audio Experience at Europe’s Largest Integrated Resort
RCF Delivers Unified Audio Experience at Europe’s Largest Integrated Resort

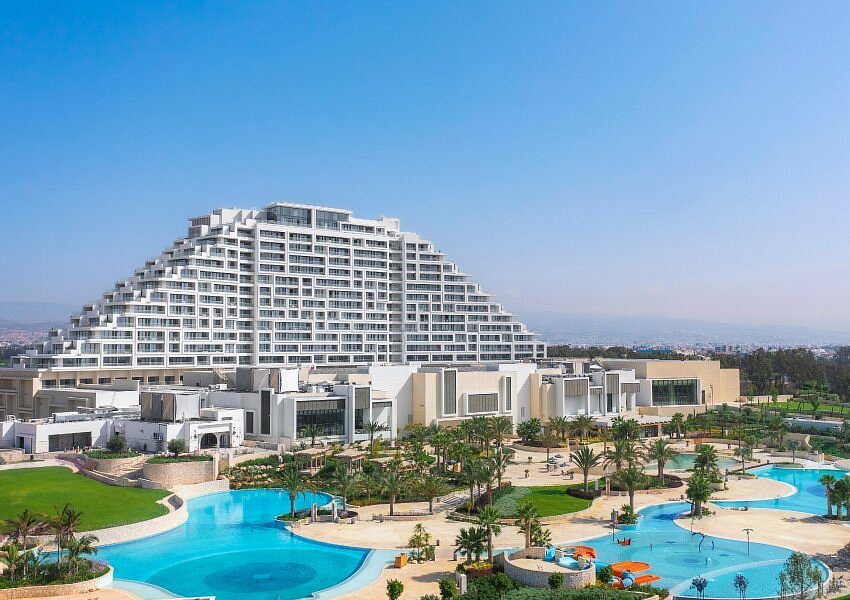

Limassol, Cyprus - Limassol’s City of Dreams Mediterranean, Europe’s largest integrated resort, has selected a comprehensive RCF audio solution to support its broad programme of entertainment, hospitality, and conference activity. Opened on July 11, 2023, the resort introduces a new destination standard for Cyprus, combining a 500-room luxury hotel, a 7 500 m² casino, 8 000 m² of event and meeting facilities, premium dining, shopping, and extensive outdoor attractions.
The project required an audio infrastructure capable of delivering consistent intelligibility, controlled coverage, and high reliability across a wide variety of acoustic environments. RCF systems were deployed throughout the resort to support background music, live performance, paging, and flexible multipurpose use.
The main entertainment stage features a line-array system designed to deliver uniform SPL across seated and standing audiences. Each side incorporates ten HDL 6-A active line-array modules paired with two SUB 8004-AS subwoofers. The compact format of the HDL 6-A improves sightlines while maintaining headroom for full-range programme material. The SUB 8004-AS extends low-frequency response with a high-power 18-inch transducer in a direct-radiating configuration, ensuring controlled low-frequency energy in the venue.
RCF loudspeakers were integrated across restaurants, public corridors, lounges, and meeting spaces to ensure seamless coverage and tonal consistency. The specification includes:
- 203 CMR 60T ceiling speakers
- 65 additional CMR 60T units in extended zones
- 104 GS 60 outdoor garden speakers
- 56 PL 6X ceiling speakers
- 64 PL 8X high-efficiency ceiling speakers
- 109 WMR 50T wall-mount speakers
- 6 WMR 60T wall-mount speakers
- 4 NX 12-SMA stage monitors
- 2 P 8015-S weather-resistant loudspeakers
The combination of compact ceiling loudspeakers, wall-mount enclosures, and weatherized outdoor models allows each zone to maintain appropriate SPL, coverage, and acoustic character specific to its function—from discreet background ambience in fine-dining areas to higher-output foreground reinforcement in active public spaces. The NX 12-SMA monitors support flexible stage and event use throughout the resort.
Related products
NX 12-SMA
ACTIVE COAXIAL STAGE MONITOR
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 12" High power neodymium woofer, 2.5" voice coil
- 1.7" kapton dome, 1" exit, neodymium high frequency driver
- 129 dB max spl
GS 60
GARDEN SPEAKER
- Body made of linear low-density polyethylene
- Coaxial transducer with 5,25"oofer and 1,20'' tweeter
- Suitable for installation on different surfaces
- Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)
PL 8X
COAXIAL CEILING SPEAKER
- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
- 93 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
PL 6X
COAXIAL CEILING SPEAKER
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
- 92 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
HDL 6-A
ACTIVE LINE ARRAY MODULE
- 1400 W, two-way amplification
- 1.7" voice coil neodymium compression driver
- 2 x high power neodymium 6.0"woofers
- FiRPHASE processing
P 8015S
WEATHERPROOF SUBWOOFER
- 800 W RMS power handling
- 132 dB max SPL
- 50 Hz ÷ 200 Hz frequency range
- 15" neodymium woofer, 4.0" v.c.
WMR 50T
TWO-WAY WALL MOUNT MONITOR SPEAKER
- 40W RMS power handling
- 110 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
WMR 60T
TWO-WAY WALL-MOUNT MONITOR SPEAKER
- 80W RMS power handling
- 114 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
CMR 60T
TWO-WAY CEILING MONITOR SPEAKER
- 80W RMS power handling
- 114 dB max SPL
- Self extinguishing plastic body and metal backcan
- Steel magnetic front grille
SUB 8004-AS
ACTIVE HIGH POWER SUBWOOFER
- 2500 Watt Peak
- 18" Woofer, 4.0" voice coil vented woofer
- 30 Hz - 120 Hz frequency response
- 136 dB max SPL
